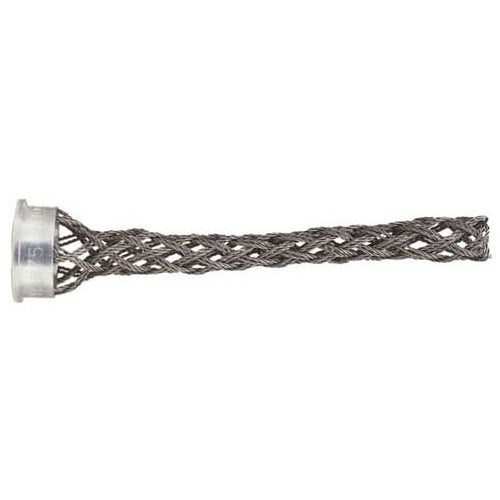

T&B WMG-PC1 1/2" Wiremesh Grip Stainless Steel

Overview

T&B WMG-PC1 1/2" Wiremesh Grip Stainless Steel

Product Specifications

• UPC: 78621076998
• Catalog Number: WMG-PC1
• Model: WMG-PC
• Connector Type: 45 Deg, 90 Deg, Straight
• Cord Size: 0.187 to 0.25 Inch
• Material: Stainless Steel (Mesh), Aluminum (Ring)
• Application: Strain Relief
• Approval: UL, CSA
• Additional Information: Cord and Cable Type S, SO, SV, ST, STD, SJ, SJO, SJT, SJTO, SVD
• Catalog Description: STAINLESS STEEL WIRE MESH GRIP FOR USE WITH 1/2 INCH CORD FITTINGS, UL, CSA, GRIP RANGE 0.187 TO 0.250 INCH
• Category: Cable & Cord Grips
• Full Technical Description: Stainless Steel (Mesh), Aluminum (Ring) Material; UL, CSA Approval; Strain Relief Application; 45 Deg, 90 Deg, Straight Connector Type; 0.187 to 0.25 Inch Cord Size; Cord and Cable Type S, SO, SV, ST, Std, SJ, SJO, SJT, SJTO, Svd; WMG-PC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector Grip
• Unspsc: 39121431
• UPC 12 Digit: 786210769981
• SKU Name: t&b wmgpc1

Resources

• Manufacturer Spec Sheet
