Overview

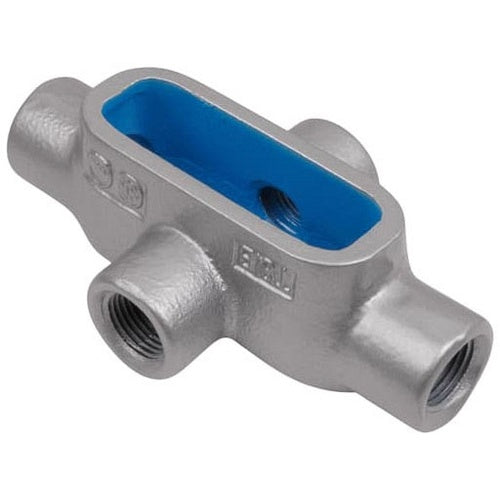

T&B X17 1/2" Conduit Body Gray Iron X Form-7

Product Specifications

• UPC: 78621008460
• Size: 5.6 Inch Length x 3.05 Inch Width x 1.8 Inch Height
• Installation: Threaded
• Material: PTFE Based BlueKote Coated Internal, Zinc Plated with Acrylic Epoxy Coated Class 30 Gray Iron Alloy
• Form Type: Form 7
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Catalog Number: X17
• Brand Name: BlueKote[R]
• Access Opening: Cross Side
• Configuration: X
• Cover Type: Zinc Plated Stamped Steel with Clear Chromate Coating
• Hub Location: Cross
• Number Of Hubs: 4
• Hub Size: 1/2 Inch
• Catalog Description: BLUEKOTE FORM 7, (X) 1/2 INCH CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: PTFE Based Bluekote Coated Internal, Zinc Plated With Acrylic Epoxy Coated Class 30 Gray Iron Alloy Material; 5.6 Inch Length X 3.05 Inch Width X 1.8 Inch Height Size; Imc/Rigid Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; X Configuration; 4 Hub(S); UL, CSA Approval; Zinc Plated Stamped Steel With Clear Chromate Coating Cover Type; Cross Hub Location; Form 7 Form Type; Cross Side Access Opening
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210084602
• SKU Name: t&b x17

Resources

• Manufacturer Spec Sheet
