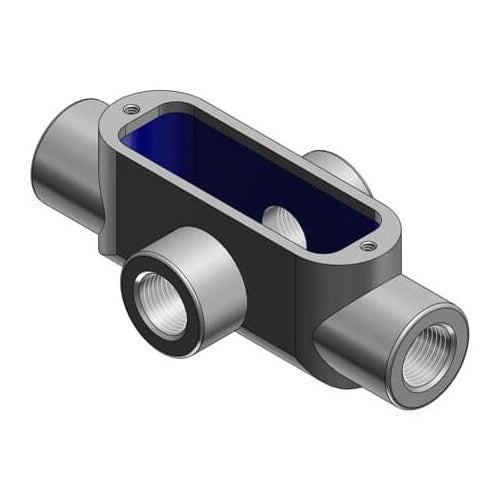

T&B X18 1/2" Conduit Body Iron X Form-8

Product Specifications

• UPC: 78621016634
• Installation: THREADED
• Material: SAND CAST ZINC PLATED, ALUMINUM ACRYLIC COATED GRAY IRON ALLOY BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW
• Form Type: FORM 8
• Approval: UL 514-A, UL 514-B, CSA 22.2
• Used On: RIGID CONDUIT
• Additional Information: APPLICABLE STANDARD FEDERAL SPECIFICATION WC-586D
• Catalog Number: X18
• Access Opening: SIDE
• Configuration: X
• Cover Type: SAND CAST ZINC PLATED, ALUMINUM ACRYLIC COATED GRAY (IRON ALLOY), STAMPED ZINC PLATED, CLEAR CHROMATE COATED (STEEL), SCREW ON
• Hub Location: CROSS
• Number Of Hubs: 4
• Hub Size: 1/2 INCH
• Size: 5-11/16 INCH L X 2-29/32 INCH W X 1-3/4 INCH H
• Catalog Description: BLUEKOTE FORM 8, (X) 1/2 INCH CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw Material; 5-11/16 Inch L X 2-29/32 Inch W X 1-3/4 Inch H Size; Rigid Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; X Configuration; 4 Hub(S); UL 514-A, UL 514-B, CSA 22.2 Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw on Cover Type; Cross Hub Location; Form 8 Form Type; Side Access Opening; Applicable Standard Federal Specification WC-586D
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210166346
• SKU Name: t&b x18
