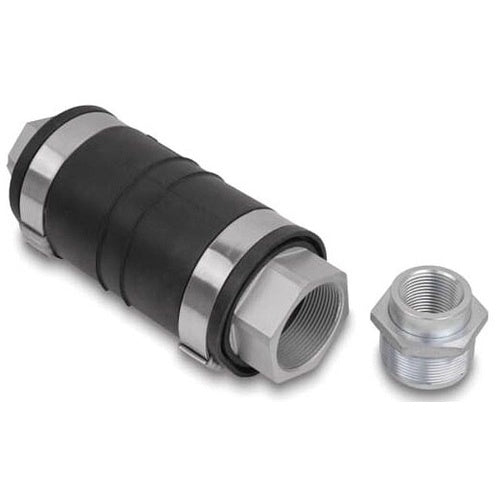

T&B XD3-TB 1" Expn/Dfln Coupling

Overview

T&B XD3-TB 1" Expn/Dfln Coupling

Product Specifications

• UPC: 78620989405
• Ground Type: Internally Grounded Flexible Copper Braid
• Material: Zinc Plated Aluminum Acrylic Paint Ductile Cast Iron Hub, Zinc Plated Steel Hub Ring, Stainless Steel Sleeve, Black Neoprene Jacket, Copper Mounting Plate, Stainless Steel Strap
• Approval: UL 514B, CSA C22.2
• Used On: IMC/Rigid Conduit
• Additional Information: Application Bridge, Tunnel, Inter-Building Walkway, Dock, Pier, Waste Water and Water Treatment Facility
• Catalog Number: XD3-TB
• Model: XD
• Type: Thermal Expansion/Contraction
• Trade Size: 1 Inch
• Diameter: 3-11/32 Inch
• Length: 9-13/16 Inch
• Maximum Movement: 3/4 Inch, 30 Deg
• Constructional Feature: Corrosion Resistant, Watertight NEMA 4, Tamperproof
• Catalog Description: 1 INCH XD CAST IRON EXPANSION/DEFLECTION COUPLING WITH ELECTRO ZINC PLATING
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Thermal Expansion/Contraction Type; Zinc Plated Aluminum Acrylic Paint Ductile Cast Iron Hub, Zinc Plated Steel Hub Ring, Stainless Steel Sleeve, Black Neoprene Jacket, Copper Mounting Plate, Stainless Steel Strap Material; 9-13/16 Inch; Imc/Rigid Conduit Used on; 3/4 Inch, 30 Deg Max. Movement; UL 514B, CSA C22.2 Approval; 3-11/32 Inch Diameter; Internally Grounded Flexible Copper Braid; 1 Inch Trade Size; Corrosion Resistant, Watertight NEMA 4, Tamperproof; Application Bridge, Tunnel, Inter-Building Walkway, Dock, Pier, Waste Water and Water Treatment Facility; XD Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Products
• Sub Category: Rigid/EMT Expansion/Deflection Joint
• Unspsc: 39131707
• UPC 12 Digit: 786209894052
• SKU Name: t&b xd3tb
