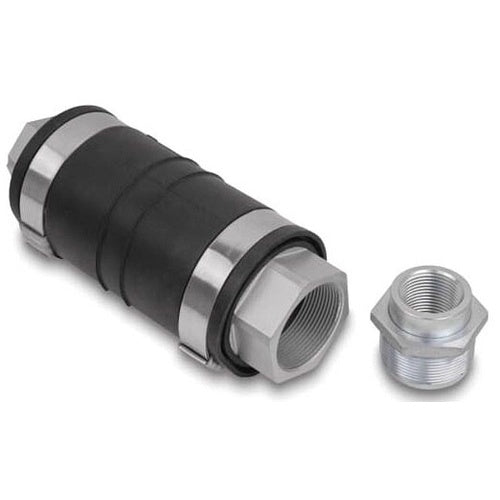

T&B XD9-TB 3-1/2 Expn/Dfln Coupling

Overview

T&B XD9-TB 3-1/2 Expn/Dfln Coupling

Product Specifications

• UPC: 78620989419
• Material: ZINC PLATED ALUMINUM ACRYLIC PAINT/DUCTILE CAST IRON HUB, ZINC PLATED STEEL HUB RING, STAINLESS STEEL SLEEVE, BLACK NEOPRENE JACKET, COPPER MOUNTING PLATE, STAINLESS STEEL STRAP
• Approval: UL 514-B, CSA C22.2
• Used On: RIGID/PVC CONDUIT
• Additional Information: APPLICATION BRIDGE, TUNNEL, INTER-BUILDING WALKWAY, DOCK, PIER, WASTE WATER AND WATER TREATMENT FACILITY
• Catalog Number: XD9-TB
• Type: THERMAL EXPANSION/CONTRACTION
• Trade Size: 3 1/2 INCH
• Diameter: 6 5/8 INCH
• Length: 10 9/16 INCH
• Maximum Movement: 3/4 INCH, 30 DEG
• Constructional Feature: CORROSION RESISTANT, WATER TIGHT NEMA 4, TAMPER PROOF
• Ground Type: INTERNALLY GROUNDED FLEXIBLE COPPER BRAID
• Catalog Description: 3-1/2 INCH XD CAST IRON EXPANSION/DEFLECTION COUPLING WITH ELECTRO ZINC PLATING
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Thermal Expansion/Contraction Type; Zinc Plated Aluminum Acrylic Paint/Ductile Cast Iron Hub, Zinc Plated Steel Hub Ring, Stainless Steel Sleeve, Black Neoprene Jacket, Copper Mounting Plate, Stainless Steel Strap Material; 10 9/16 Inch; Rigid/Pvc Conduit Used on; 3/4 Inch, 30 Deg Max. Movement; UL 514-B, CSA C22.2 Approval; 6 5/8 Inch Diameter; Internally Grounded Flexible Copper Braid; 3 1/2 Inch Trade Size; Corrosion Resistant, Water Tight NEMA 4, Tamper Proof; Application Bridge, Tunnel, Inter-Building Walkway, Dock, Pier, Waste Water and Water Treatment Facility
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Products
• Sub Category: Rigid/Emt Expansion/Deflection Joint
• Unspsc: 39131707
• UPC 12 Digit: 786209894199
• SKU Name: t&b xd9tb

Resources

• Manufacturer Spec Sheet
