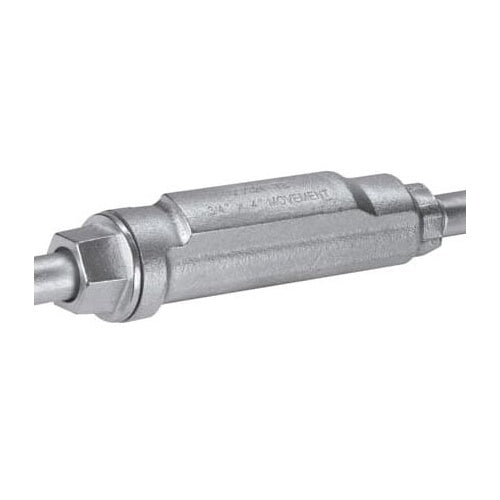

T&B XJG104-TB 4" Expansion Coupling, 4" Movement

Overview

T&B XJG104-TB 4" Expansion Coupling, 4" Movement

Product Specifications

• UPC: 78621088116
• Material: Zinc Plated/PVC Exterior Coated Malleable Iron Body, Tinned Copper Braid Bonding Jumper, PTFE/Synthetic Fiber Packing
• Approval: UL
• Used On: IMC/Rigid Conduit
• Additional Information: Height 6.75 Inch
• Catalog Number: XJG104-TB
• Model: XJG
• Trade Size: 4 Inch
• Diameter: 6.37 Inch
• Length: 12.87 Inch
• Maximum Movement: 4 Inch
• Constructional Feature: Raintight
• Ground Type: Internally Grounded
• Catalog Description: 4 INCH XJG CONDUIT EXPANSION COUPLING WITH INTERNAL BONDING JUMPER, BODY MALLEABLE IRON ZINC PLATED, INTERNAL BONDING JUMPER TINNED COPPER BRAID, PACKING PTFE/SYNTHETIC FIBER MATERIAL, 4 INCH MOVEMENT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Zinc Plated/Pvc Exterior Coated Malleable Iron Body, Tinned Copper Braid Bonding Jumper, Ptfe/Synthetic Fiber Packing Material; 12.87 Inch; Imc/Rigid Conduit Used on; 4 Inch Max. Movement; UL Approval; 6.37 Inch Diameter; Internally Grounded; 4 Inch Trade Size; Raintight; Height 6.75 Inch; XJG Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Expansion/Deflection Joint
• Unspsc: 39131707
• UPC 12 Digit: 786210881164
• SKU Name: t&b xjg104tb

Resources

• Manufacturer Spec Sheet
