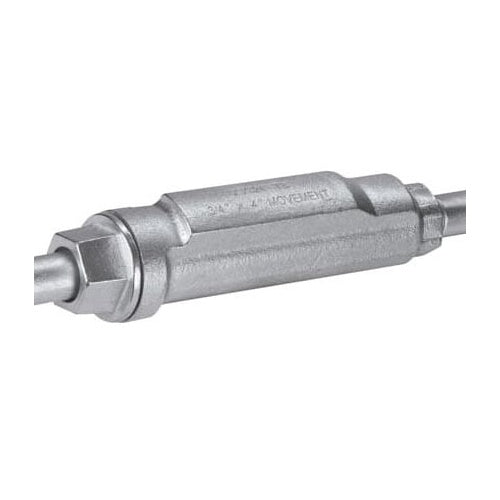

T&B XJG64-TB 2" Expansion Coupling, 4" Movement

Overview

T&B XJG64-TB 2" Expansion Coupling, 4" Movement

Product Specifications

• UPC: 78621088103
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Height 4.18 Inch
• Catalog Number: XJG64-TB
• Model: XJG
• Trade Size: 2 Inch
• Diameter: 3.86 Inch
• Length: 11.25 Inch
• Maximum Movement: 4 Inch
• Ground Type: Internally
• Material: Zinc Plated 40 Mil PVC Coated Malleable Iron (Body), Tinned Copper Braid Bonding (Jumper), PTFE/Synthetic Fiber (Packing)
• Catalog Description: 2 INCH XJG CONDUIT EXPANSION COUPLING WITH INTERNAL BONDING JUMPER, BODY MALLEABLE IRON ZINC PLATED, INTERNAL BONDING JUMPER TINNED COPPER BRAID, PACKING PTFE/SYNTHETIC FIBER MATERIAL, 4 INCH MOVEMENT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Zinc Plated 40 mil PVC Coated Malleable Iron (Body), Tinned Copper Braid Bonding (Jumper), Ptfe/Synthetic Fiber (Packing) Material; 11.25 Inch; Imc/Rigid Conduit Used on; 4 Inch Max. Movement; UL, CSA Approval; 3.86 Inch Diameter; Internally; 2 Inch Trade Size; Height 4.18 Inch; XJG Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Expansion/Deflection Joint
• Unspsc: 39131707
• UPC 12 Digit: 786210881034
• SKU Name: t&b xjg64tb

Resources

• Manufacturer Spec Sheet
