Product information
Overview

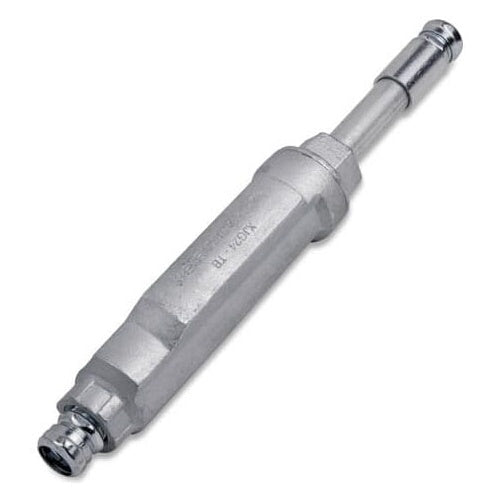

T&B XJG74-EMT 2-1/2" Conduit Expansion Coupling
Product Specifications
- UPC: 78620986925
- Approval: UL, CSA
- Used On: EMT CONDUIT
- Additional Information: PACKING MATERIAL PTFE/SYNTHETIC FIBER
- Catalog Number: XJG74-EMT
- Type: EXPANSION
- Trade Size: 2 1/2 INCH
- Diameter: 4.52 INCH
- Length: 23.23 INCH
- Maximum Movement: 4 INCH
- Constructional Feature: TAMPER PROOF
- Material: ZINC PLATED ALUMINUM ACRYLIC PAINTED DUCTILE IRON BODY, TINNED COPPER BRAID INTERNAL BONDING JUMPER, CARBON STEEL
- Catalog Description: 2-1/2 INCH XJG CONDUIT EXPANSION COUPLING WITH INTERNAL BONDING JUMPER, 4 INCH MOVEMENT FOR USE WITH EMT CONDUIT
- Category: Rigid Conduit Fittings - Steel
- Full Technical Description: Expansion Type; Zinc Plated Aluminum Acrylic Painted Ductile Iron Body, Tinned Copper Braid Internal Bonding Jumper, Carbon Steel Material; 23.23 Inch; EMT Conduit Used on; 4 Inch Max. Movement; UL, CSA Approval; 4.52 Inch Diameter; 2 1/2 Inch Trade Size; Tamper Proof; Packing Material Ptfe/Synthetic Fiber
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Products
- Sub Category: Rigid/Emt Expansion/Deflection Joint
- Unspsc: 39121434
- UPC 12 Digit: 786209869258
- SKU Name: t&b xjg74emt
