Product information
Overview

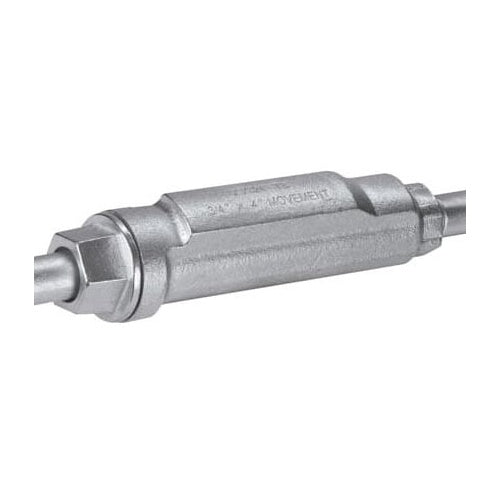

T&B XJG84-TB 3" Expansion Coupling, 4" Movement
Product Specifications
- UPC: 78621088112
- Material: Zinc Plated/PVC Exterior Coated Malleable Iron Body, Tinned Copper Braid Bonding Jumper, PTFE/Synthetic Fiber Packing
- Approval: UL
- Used On: IMC/Rigid Conduit
- Additional Information: Height 5.25 Inch
- Catalog Number: XJG84-TB
- Model: XJG
- Trade Size: 3 Inch
- Diameter: 4.96 Inch
- Length: 12.12 Inch
- Maximum Movement: 4 Inch
- Constructional Feature: Raintight
- Ground Type: Internally Grounded
- Catalog Description: 3 INCH XJG CONDUIT EXPANSION COUPLING WITH INTERNAL BONDING JUMPER, BODY MALLEABLE IRON ZINC PLATED, INTERNAL BONDING JUMPER TINNED COPPER BRAID, PACKING PTFE/SYNTHETIC FIBER MATERIAL, 4 INCH MOVEMENT
- Category: Rigid Conduit Fittings - Steel
- Full Technical Description: Zinc Plated/Pvc Exterior Coated Malleable Iron Body, Tinned Copper Braid Bonding Jumper, Ptfe/Synthetic Fiber Packing Material; 12.12 Inch; Imc/Rigid Conduit Used on; 4 Inch Max. Movement; UL Approval; 4.96 Inch Diameter; Internally Grounded; 3 Inch Trade Size; Raintight; Height 5.25 Inch; XJG Model
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Rigid/EMT Expansion/Deflection Joint
- Unspsc: 39131707
- UPC 12 Digit: 786210881126
- SKU Name: t&b xjg84tb
