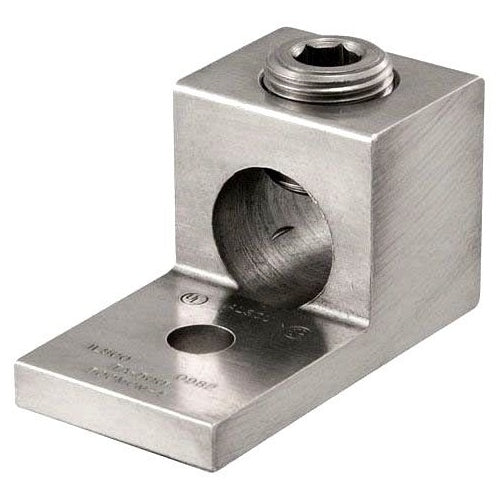

ILSCO TA-500 4-500mcm Aluminum/Copper Lug

Overview

Ilsco TA-500 4-500mcm Aluminum/Copper Lug

Product Specifications

• UPC: 78366989101
• Material: Electro Tin Plated High Strength 6061-T6 Aluminum Alloy
• Number Of Pad Holes: 1
• Pad Size: 1-19/32 Inch Length x 1-1/2 Inch Width x 5/16 Inch Thickness
• Stud Size: 3/8 Inch
• Overall Length: 2-13/16 Inch
• Approval: UL 453G/467, CSA
• Additional Information: RoHS Compliant; Overall Height 1-13/16 Inch; Voltage Rating 35 Kilovolt; Temperature Rating 90 Deg C
• Catalog Number: TA-500
• Model: TA
• Type: Chamfered Wire Entry, Dual Rated
• Number Of Conductors: 1
• Minimum Conductor Size: 4 AWG
• Maximum Conductor Size: 500 KCMIL
• Conductor Material: Copper/Aluminum
• Screw Type: 3/8 Inch Hex Head
• Catalog Description: ALUMINUM MECHANICAL LUG, CONDUCTOR RANGE 500-4, 1 PORT, 1 HOLE, 3/8IN BOLT SIZE, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Chamfered Wire Entry, Dual Rated Type; Electro Tin Plated High Strength 6061-T6 Aluminum Alloy Material; 2-13/16 Inch Overall Length; 4 AWG min. Conductor Size; 500 kcmil Max. Conductor Size; Copper/Aluminum Conductor Material; UL 453G/467, CSA Approval; 1 Conductor(S); 3/8 Inch Stud Size; 1-19/32 Inch Length X 1-1/2 Inch Width X 5/16 Inch Thickness Pad Size; 1 Pad Hole(S); 3/8 Inch Hex Head Screw Type; RoHS Compliant; Overall Height 1-13/16 Inch; Voltage Rating 35 Kilovolt; Temperature Rating 90 Deg C; TA Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669891010
• SKU Name: ta500 ilsco
