Overview

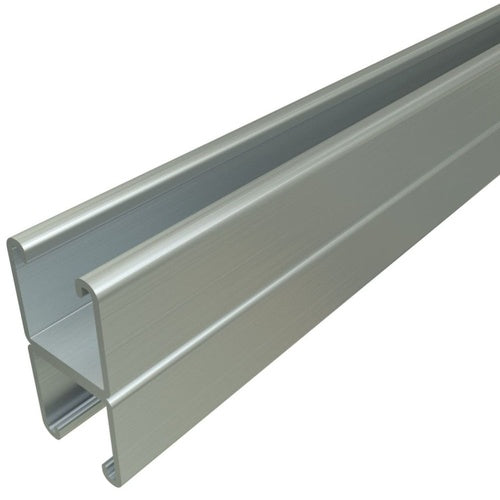

Unistrut P1001-10HG 1-5/8" x 3-1/4", 12 Gauge Back-to-Back, Solid

Product Specifications

• Brand Name: Unistrut
• Material Standard: ASTM A1011
• Special Features: Part of Complete System
• Sub Brand: Metal Framing Components
• Type: Back-To-Back Solid Channel
• Weight: 3.78 lb/ft
• Width: 3.25 in
• Depth: 1-5/8 in
• Finish: Hot-Dip Galvanize
• Flange Thickness: 12 GA
• Flange Width: 3-1/4 IN
• Gauge: 12 GA
• Grade: 33
• Length: 10 ft
• Material Composition: Low Carbon Steel
• Catalog Description: STRUT CHANNEL, 12GA, 1-5/8"X 3-1/4", SOLID, B2B-WELD, HG
• Category: Channel & Strut
• Full Technical Description: Metal Framing, Back to Back Combination Type; ASTM A1011 SS Grade 33 Low Carbon Steel Material; Hot Dip Galvanized Finish; 10 Foot; 1-5/8 Inch; 3-1/4 Inch; Solid Configuration; UL E19459, CSA 013669 Applicable Standard; 12 Gauge Thickness; Cold Formed Process; 402.8 Pound Per 100 Foot Weight; 2 Channel(S); 0.79 Inch Deflection; 1.111 Square Inch Cross Section Area; 960 Pound Beam Load Rating; 10900 Pound (0.65 Load Factor) Column Load Rating; P1001 Model
• Made In Usa: Yes
• Manufacturer: ATKORE- UNISTRUT
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel/Strut
• Unspsc: 30101804
• UPC 12 Digit: 786364013985
• SKU Name: unistr p100110hg
