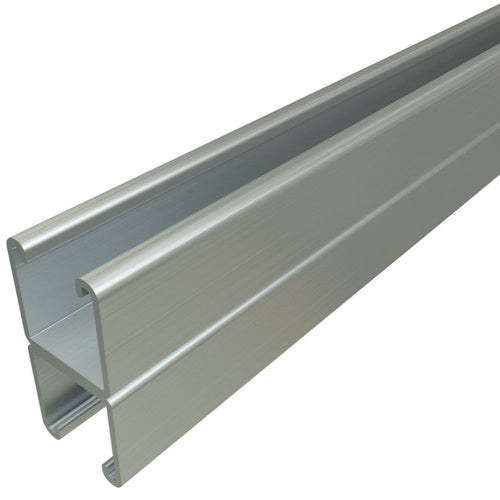

Unistrut P1001-20HG 1-5/8" x 3-1/4", 12 Gauge Back-to-Back, Solid

Overview

Unistrut P1001-20HG 1-5/8" x 3-1/4", 12 Gauge Back-to-Back, Solid

Houston Pick-Up Only

No-Free Shipping

Product Specifications

• Brand Name: Unistrut
• Special Features: Part of Complete System
• Sub Brand: Metal Framing Components
• Type: Structural Channels are Construction Material, a Profile, Formed With a Specific Shape or Cross Section and Certain Standards of Chemical Composition and Mechanical Properties Structural Steel Shape, Size, Composition, Strength, Storage, and Made of Steel
• Catalog Description: STRUT CHANNEL, 12GA, 1-5/8"X 3-1/4", SOLID, B2B-WELD, HG
• Category: Channel & Strut
• Full Technical Description: Metal Framing, Back to Back Combination Type; ASTM A1011 SS Grade 33 Low Carbon Steel Material; Hot Dip Galvanized Finish; 20 Foot; 1-5/8 Inch; 3-1/4 Inch; Solid Configuration; UL E19459, CSA 013669 Applicable Standard; 12 Gauge Thickness; Cold Formed Process; 402.8 Pound Per 100 Foot Weight; 2 Channel(S); 3.16 Inch Deflection; 1.111 Square Inch Cross Section Area; 480 Pound Beam Load Rating
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel/Strut
• Unspsc: 30101804
• UPC 12 Digit: 786364014043
• SKU Name: unistr p100120hg

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
