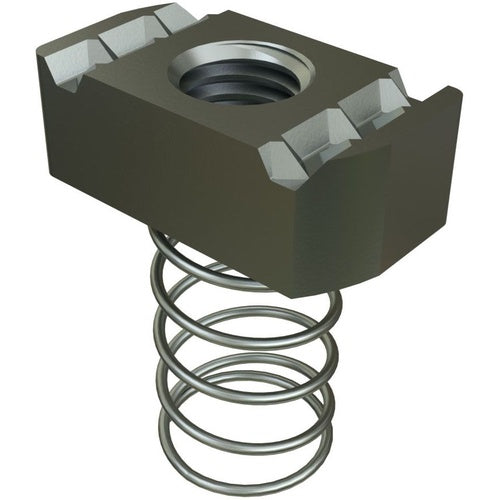

Unistrut P1008-EG 3/8" Spring Nut ( 1-5/8" Series )

Overview

Unistrut P1008-EG 3/8" Spring Nut ( 1-5/8" Series )

Product Specifications

• Brand Name: Unistrut
• Finish: Electrogalvanizing
• Grade: 1015
• Material Of Construction: ASTM A576 Steel
• Special Features: Part of Complete System
• Sub Brand: Metal Framing Components
• Thread Size: 0.375 in
• Thread Type: UNC
• Type: Channel Nut With Spring
• Catalog Description: STRUT CHANNEL NUT, 3/8"-16, 3/4"X 1-5/8"X 1-23/64", WITH STANDARD SPRING, EG
• Category: Screws,Nuts,Bolts,Washers
• Full Technical Description: With Spring Type; Mild Steel Material; Electrogalvanized Finish; 3/8 Inch Nominal Diameter; Unc-2 Thread Series; 16 TPI; CSA, ANSI B1.1 Applicable Standard; Case Hardened Process; ASTM A576/B633 Grade 1015 Material Specification; Safety Factor 3; Used on P1000/P1100/P2000/P3000/P1001/P1101/P2001/P3001, 1-5/8 Inch Width Channel; P1008 Model
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel Nut - Non Metric
• Unspsc: 31161721
• UPC 12 Digit: 786364100807
• SKU Name: unistr p1008eg

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
