Unistrut P1008-HG Channel Nuts (1-5/8" Series)

Overview

Unistrut P1008-HG Channel Nuts (1-5/8" Series)

Product Specifications

• Brand Name: Unistrut
• Special Features: Part of Complete System
• Sub Brand: Metal Framing Components
• Type: A type of fastener that has either a shallow or deep channel in which to bolt items together.

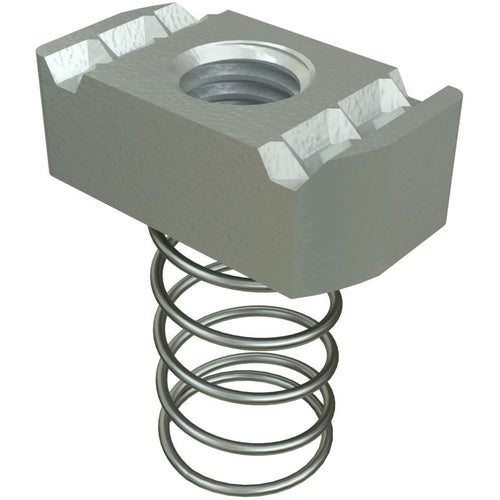

• Catalog Description: STRUT CHANNEL NUT, 3/8"-16, 3/4"X 1-5/8"X 1-23/64", WITH STANDARD SPRING, HG
• Category: Channel & Strut Fittings
• Full Technical Description: With Spring Type; Mild Steel Bar Material; Hot Dip Galvanized Finish; 3/8 Inch Nominal Diameter; Unc-2 Thread Series; 16 TPI; CSA, ANSI B1.1 Applicable Standard; Case Hardened Process; ASTM A576 GR1015, ASTM A153 Material Specification; Safety Factor 3; Used on P1000/P1100/P2000/P3000/P1001/P1101/P2001/P3001, 1-5/8 Inch Width Channel
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel Nut - Non Metric
• Unspsc: 31161721
• UPC 12 Digit: 786364015484
• SKU Name: unistr p1008hg

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
