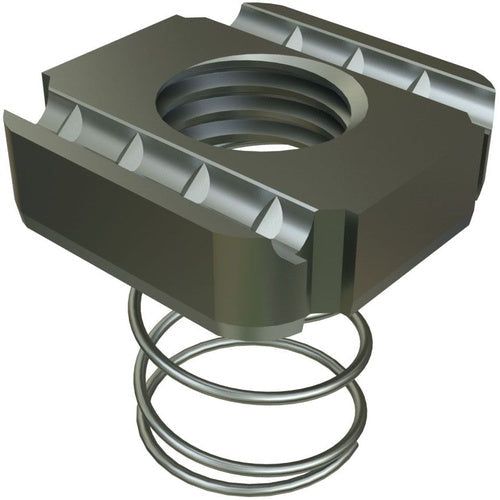

Unistrut P1012S-EG 5/8 Spring Nut ( 1-5/8" Series )

Overview

Unistrut P1012S-EG 5/8 Spring Nut ( 1-5/8" Series )

Product Specifications

• Brand Name: Unistrut
• Special Features: Part of Complete System
• Sub Brand: Metal Framing Components
• Type: A type of fastener that has either a shallow or deep channel in which to bolt items together.
• Catalog Description: STRUT CHANNEL NUT, 5/8"-11, 1.345"X 1-1/2"X 1-1/4", WITH STANDARD SPRING, EG
• Category: Screws,Nuts,Bolts,Washers
• Full Technical Description: With Spring Type; Mild Steel Bar Material; Electrogalvanized Finish; 5/8 Inch Nominal Diameter; Unc-2 Thread Series; 11 TPI; CSA, ANSI B1.1 Applicable Standard; Case Hardened Process; ASTM A36/A675/B633 Grade 60 Material Specification; Safety Factor 3; Used on P1000/P1100/P2000/P3000/P1001/P1101/P2001/P3001, 1-5/8 Inch Width Channel
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel Nut - Non Metric
• Unspsc: 31161721
• UPC 12 Digit: 786364101217
• SKU Name: unistr p1012seg

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
