Overview

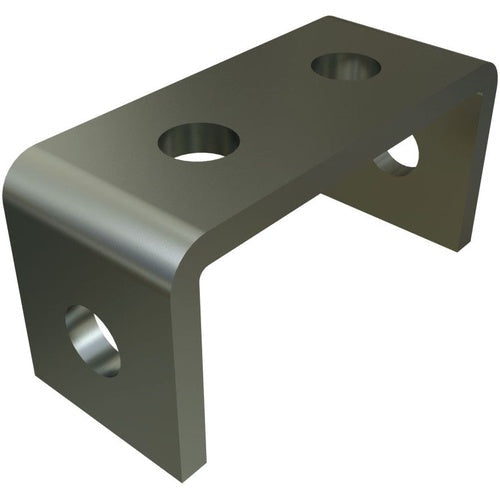

Unistrut P1044-EG 4-Hole U Fitting

Product Specifications

• Catalog Description: STRUT FITTING, 1-5/8"X 1-7/8"X 3-25/32", EG
• Category: Channel & Strut Fittings
• Full Technical Description: U-Fitting Type; ASTM A1011/A36/A575/A576/A635/B633 Grade SS 33 Steel Material; 3-25/32 Inch Width X 1-7/8 Inch Height Size; Electrogalvanized Finish; Channel Used on; 1-5/8 Inch Channel Width; UL, CSA Applicable Standard; 1/4 Inch Thickness; Hot Rolled Pickled and Oiled Process; 0.7 Pound Weight; 4 Hole(S); 9/16 Inch Diameter Hole Size; 3-25/32 Inch Width X 1-7/8 Inch Height Saddle Size; Hole Spacing Size 13/16 Inch (From End), 1-7/8 Inch (on Center); Safety Factor 2.5
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel/Strut U Fitting
• Unspsc: 31162502
• UPC 12 Digit: 786364016207
• SKU Name: unistr p1044eg

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
• Product Spec Sheet
