Overview

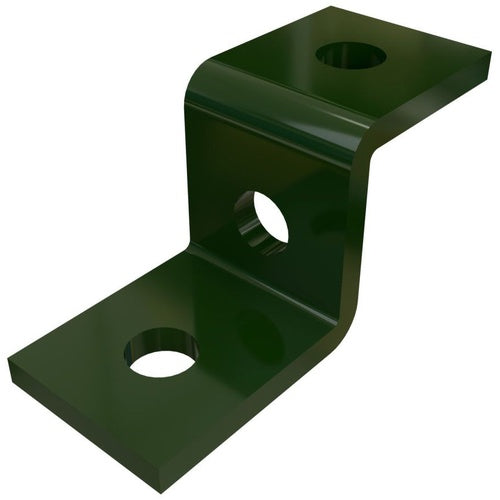

Unistrut P1045-GR 3-Hole Z Angle

Product Specifications

• Catalog Description: STRUT FITTING, 1-5/8"X 1-7/8"X 3-3/4", GR
• Category: Channel & Strut Fittings
• Full Technical Description: ASTM A575/A576/A635/A1011 SS Gr 33/A36 Steel Material; Green Powder Coated Finish; P1000 Series Channel Used on; 1-5/8 Inch Channel Width; UL, CSA Applicable Standard; 1/4 Inch Thickness; Hot Rolled Pickled and Oiled Process; 0.55 Pound Weight; 3 Hole(S); 9/16 Inch Diameter Hole Size; 1-5/8 Inch Channel Depth; 1-5/8 Inch Offset; Safety Factor 2.5; Hole Spacing Size 13/16 Inch (From End), 1-7/8 Inch (on Center)
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel/Strut Z Fitting
• Unspsc: 31162502
• UPC 12 Digit: 786364104508
• SKU Name: unistr p1045gr

Resources

• Manufacturer Spec Sheet
