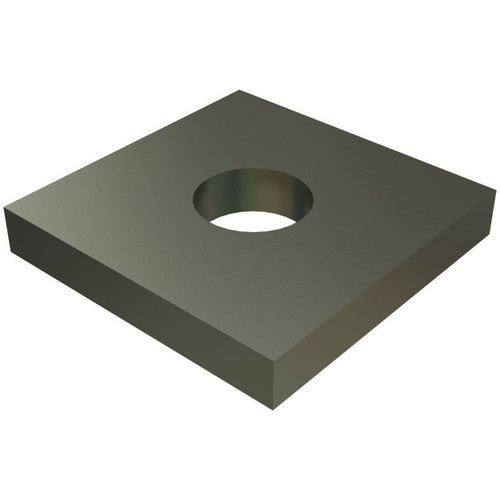

Unistrut P1062-EG 5/16 Square Wash

Overview

Unistrut P1062-EG 5/16 Square Wash

Product Specifications

• Brand Name: Unistrut
• Special Features: Part of Complete System
• Sub Brand: Metal Framing Components
• Type: Square washers are square in diameter with a hole in the center and are used in channel applications and protects the bolt from corrosion.
• Catalog Description: STRUT FITTING, 5-/16", 1-5/8"X 1/4"X 1-5/8", EG
• Category: Screws,Nuts,Bolts,Washers
• Full Technical Description: Square Type; ASTM A36/A575/A576/A635/A1011/B633 Steel Material; Electrogalvanized Finish; 1-5/8 Inch; 1-5/8 Inch; UL, CSA Applicable Standard; 1/4 Inch Thickness; Hot Rolled, Pickled, Oiled Process; 0.18 Pound Weight; 11/32 Inch Diameter Hole Size; 5/16 Inch Bolt/Rod Size; Used on 1-5/8 Inch Width Channel; P1062 Model
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel Washer
• Unspsc: 31161812
• UPC 12 Digit: 786364106205
• SKU Name: unistr p1062eg
