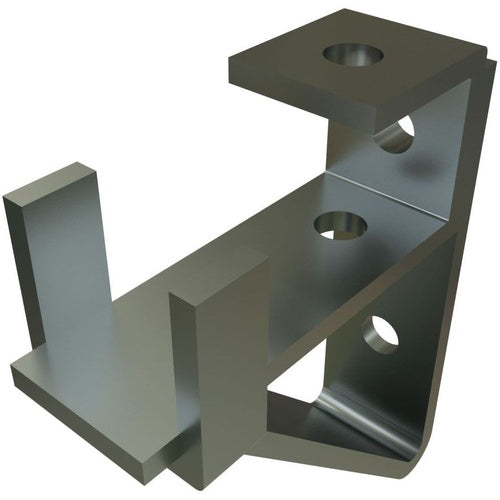

Unistrut P1075-EG Channel Bracket

Overview

Unistrut P1075-EG Channel Bracket

Product Specifications

• Catalog Description: STRUT BRACKET, 2-5/32"X 5-7/8"X 4-3/4", EG
• Category: Channel & Strut Fittings
• Full Technical Description: ASTM A1011/A36/A575/A576/A635/B633 SS Grade 33 Steel Material; Electrogalvanized Finish; 4-3/4 Inch; 5-7/8 Inch; P1000/P1100/P2000/P4001 Vertical Channel Used on; 1-5/8 Inch Channel Width; 1/4 Inch Thickness; Hot Rolled Pickled and Oiled Process; 3200/4400/5100 Inch-Pound Load Rating; 12/14/16 Gauge Channel Thickness; 2 Vertical Mounting Hole(S); 2 Horizontal Mounting Hole(S); Hole Diameter 9/16 Inch; Hole Spacing 13/16 Inch (From End); Safety Factor 2-1/2
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel/Strut Bracket
• Unspsc: 31162502
• UPC 12 Digit: 786364016832
• SKU Name: unistr p1075eg

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
• Product Spec Sheet
