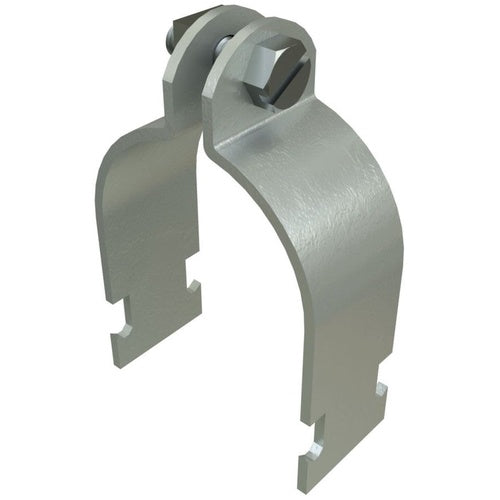

Unistrut P1115-HG 1-1/2" Conduit ClAMP

Overview

Unistrut P1115-HG 1-1/2" Conduit Clamp

Product Specifications

• Brand Name: Unistrut
• Finish: Hot-Dip Galvanize
• Load: 800 LB
• Material: Steel
• Size: 1-1/2 IN
• Special Features: Slotted hex head screw and nut included
• Sub Brand: Metal Framing Components
• Type: Pipe Clamp
• Catalog Description: STRUT PIPE CLAMP, 1-1/2", 1-1/4"X 3-7/16"X 2.12", HG
• Category: Channel & Strut Fittings
• Full Technical Description: Pipe/Rigid Conduit to Strut Type; ASTM A1008/A575/A576/A635/A1011 SS Gr 33/A1046/A36/A123/A153 Hot Rolled Pickled and Oiled 12 Gauge Steel Material; Hot Dip Galvanized Finish; 1.9 Inch Outer Diameter; 2-Piece Construction; 800 Pound Load Rating; 1-1/2 Inch Trade Size; Safety Factor 5; Includes Slotted Hex Head Screw and Nut; Approval CSA
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel Conduit/Cable Clamp
• Unspsc: 31162906
• UPC 12 Digit: 786364018140
• SKU Name: unistr p1115hg
