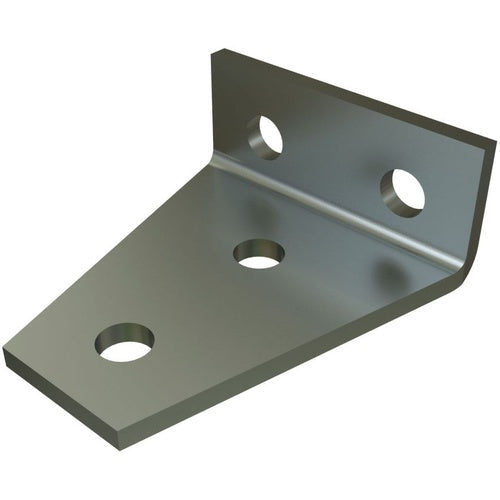

Unistrut P1359-EG 4-Hole 90D Corner Angle

Product Specifications

• Catalog Description: STRUT FITTING, 3-1/2"X 1-5/8"X 4-1/8", EG
• Category: Channel & Strut Fittings
• Full Technical Description: Corner Angle Type; ASTM A36/A575/A576/A635/A570 33 Steel Material; 1-5/8 Inch L X 3-1/2 Inch W X 4-1/8 Inch H Size; Electrogalvanized Finish; 1-5/8 Inch Channel Width; 1/4 Inch Thickness; Hot Rolled Pickled Oiled Process; 105 lb Per 100 Pieces Weight; 4 Hole(S); 2 Side(S); UNISTRUT[R] Brand; Standards and Specifications Finish ASTM B633 Type III SC1; 1-7/8 Inch Hole Spacing on Center; 13/16 Inch Hole Spacing From End; Hole Size 9/16 Inch Dia
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel/Strut 90 Deg Angle Plate
• Unspsc: 31162502
• UPC 12 Digit: 786364135915
• SKU Name: unistr p1359eg

Resources

• Manufacturer Spec Sheet
