Unistrut P1386-EG Beam ClAMP

Overview

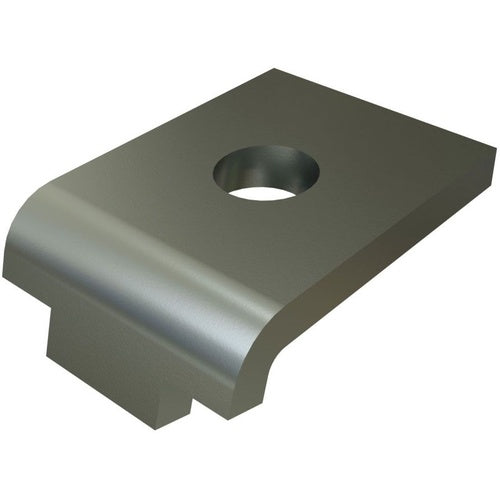

Unistrut P1386-EG Beam Clamp

Product Specifications

• Brand Name: Unistrut
• Special Features: Part of Complete System
• Sub Brand: Metal Framing Components
• Type: A type of forged or fabricated clamp that is used to attach rod hangers to beams by clamping onto the load flange.
• Catalog Description: STRUT BEAM CLAMP, 1-5/8"X 27/32"X 2-1/32", EG
• Category: Channel & Strut Fittings
• Full Technical Description: Angular I Type; Steel Material; Electrogalvanized Finish; Mechanical Support Application; Hot Rolled Pickled and Oiled Process; ASTM A1011/A575/A576/A635/B633 SS Grade 33 Material Specification; 600 Pound Load Capacity; 1/2 Inch-13 TPI X 1-1/2 Inch Screw Size; Hex Head Screw Type; Yes Supplied With Screw; Overall Dimension 1-7/8 Inch Length X 1/4 Inch Thickness; Torque Rating 125 Inch-Pound; Channel Size 1-5/8 Inch Width; Hole Spacing 13/16 Inch (From End)
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 786364020662
• SKU Name: unistr p1386eg
