Unistrut P1650AS-EG 1/2" Beam ClAMP

Overview

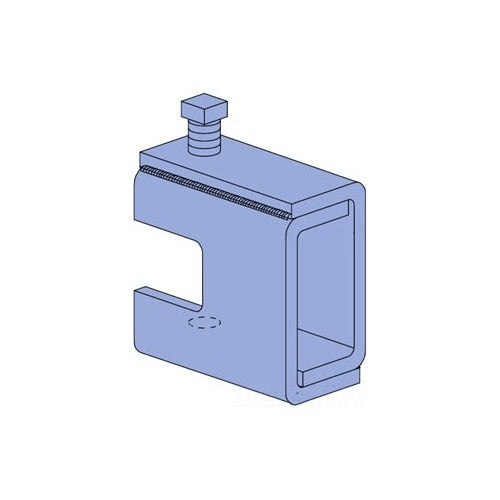

Unistrut P1650AS-EG 1/2" Beam Clamp

Product Specifications

• Catalog Description: 1/2"-13 ELECTRO-GALVANIZED BEAM CLAMP ASSEMBLED
• Category: Channel & Strut Fittings
• Full Technical Description: Wide Throat Type; Steel Material; Electrogalvanized Finish; 7/8 Inch Max. Jaw Capacity; 7/8 Max. Jaw Capacity - Fractional; Hot Rolled Pickled Oiled Process; ASTM A575/A576/A635/A36/A570 Grade 33 Material Specification; 1100 lb Load Capacity; 1/2 Inch X 1 1/2 Inch Screw Size; Square Head Screw Type; 1100 Load Capacity in lb; Yes Supplied With Screw; UNISTRUT[R] Brand; Rod Size 1/2 Inch-13 TPI; Overall Dimension 2 1/2 Inch L X 15/16 Inch W X 2 1/2 Inch H X 3/16 Inch Thk; Weight 100 lb Per 100 Pieces
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Beam Clamp
• Unspsc: 30103601
• UPC 12 Digit: 786364021638
• SKU Name: unistr p1650aseg

Resources

• Manufacturer Spec Sheet
