Overview

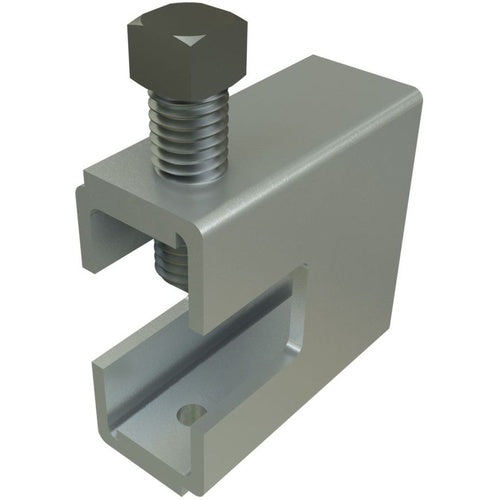

Unistrut P1651S-HG Beam Clamp

Product Specifications

• Brand Name: Unistrut
• Special Features: Part of Complete System
• Sub Brand: Metal Framing Components
• Type: A type of forged or fabricated clamp that is used to attach rod hangers to beams by clamping onto the load flange.
• Catalog Description: STRUT BEAM CLAMP, 1/2"-13, 1-7/16"X 2-1/2"X 2-1/2", HG
• Category: Channel & Strut Fittings
• Full Technical Description: Wide Throat Type; Hot Rolled Pickled Oiled ASTM A575, ASTM A576, ASTM A635, ASTM A36, ASTM A570 33 Steel Material; Hot Dip Galvanized Finish; 7/8 Inch Max. Jaw Capacity; .875 Max. Jaw Capacity - Decimal; 7/8 Max. Jaw Capacity - Fractional; 1600 lb Load Capacity; 1600 Load Capacity in lb; Unistrut. Brand; Supplied With Screw Yes; Screw Type Square Head; Screw Size 1/2 Inch; Overall Dimension 2-1/2 Inch Length X 2-1/2 Inch Height; Weight 130 lb Per 100 Pieces; Screw Length 1-1/2 Inch; Load Capacity in lb - Uom lb; Maximum Jaw Capacity - Decimal - Uom in
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 786364021744
• SKU Name: unistr p1651shg

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
