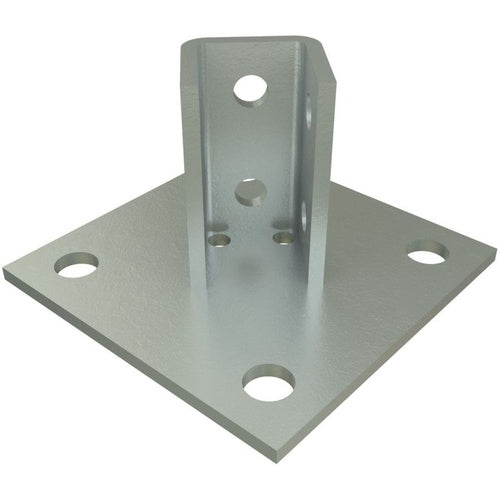

Unistrut P2072A-HG Post Base

Product Specifications

• Brand Name: Unistrut
• Special Features: Part of Complete System
• Sub Brand: Metal Framing Components
• Type: A device used at the base of a column to provide firm footing and sometimes act as a pivot to bring the pole up into position during installation and down when dismantling.
• Catalog Description: STRUT FITTING, 6"X 3-3/4"X 6", HG
• Category: Channel & Strut Fittings
• Full Technical Description: U Post, Square Base Type; ASTM A1011/A36/A575/A576/A635/A123/A153 SS Grade 33 Steel Material; Hot Dip Galvanized Finish; 3-1/2 Inch Post Height; CSA Applicable Standard; 1/4 Inch Thickness; Hot Rolled Pickled and Oiled Process; 3.954 Pound Weight; 6 Inch Length X 6 Inch Width Pad Size; 1 Channel(S); 9/16 Inch Diameter Channel Mounting Hole Size; Centered, Offset Channel Position; 4 Pad Mounting Hole(S); 3/4 Inch Diameter Pad Mounting Hole Size; 6 Channel Mounting Hole(S); Hole Spacing Size 13/16 Inch (From End), 1-7/8 Inch (on Center); Channel Size 1-5/8 Inch Width
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel/Strut Post Base
• Unspsc: 30241504
• UPC 12 Digit: 786364026282
• SKU Name: unistr p2072ahg

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
