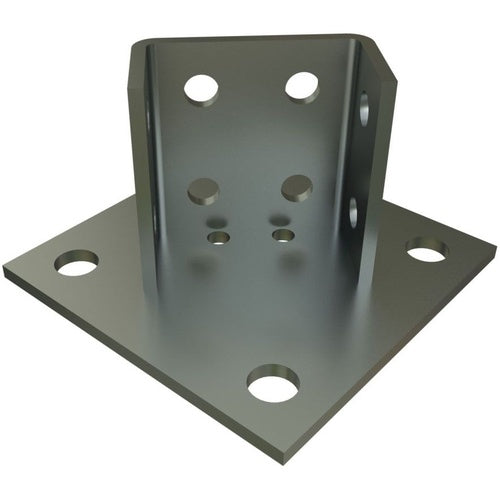

Unistrut P2073A-EG Post Base

Overview

Unistrut P2073A-EG Post Base

Product Specifications

• Brand Name: Unistrut
• Type: Post Base
• Width: 6 in
• Finish: Electrogalvanizing
• Hole Size: 9/16 IN
• Length: 6 in
• Material: ASTM A575, A576, A635 Or A36, ASTM A1011 SS GR 33 Steel
• Number Of Holes: 8
• Special Features: Part of Complete System
• Sub Brand: Metal Framing Components
• Thickness: 3-3/4 IN
• Catalog Description: STRUT FITTING, 6"X 3-3/4"X 6", EG
• Category: Channel & Strut Fittings
• Full Technical Description: U Post, Square Base Type; ASTM A1011/A36/A575/A576/A635/B633 SS Grade 33 Steel Material; Electrogalvanized Finish; 3-1/2 Inch Post Height; CSA Applicable Standard; 1/4 Inch Thickness; Hot Rolled Pickled and Oiled Process; 4.08 Pound Weight; 6 Inch Length X 6 Inch Width Pad Size; 2 Channel(S); 9/16 Inch Diameter Channel Mounting Hole Size; Centered, Offset Channel Position; 4 Pad Mounting Hole(S); 3/4 Inch Diameter Pad Mounting Hole Size; 8 Channel Mounting Hole(S); Hole Spacing Size 13/16 Inch (From End), 1-7/8 Inch (on Center); Channel Size 1-5/8 Inch Width
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel/Strut Post Base
• Unspsc: 30241504
• UPC 12 Digit: 786364019420
• SKU Name: unistr p2073aeg

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
