Overview

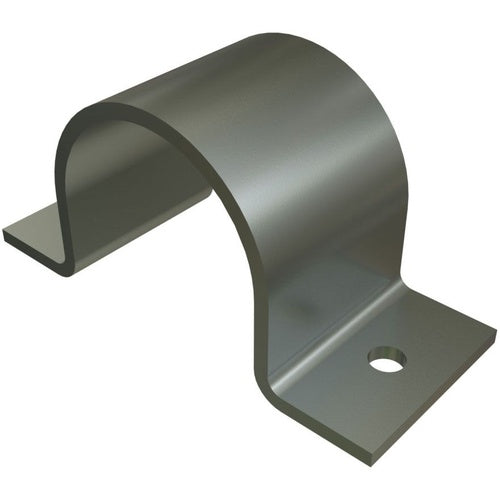

Unistrut P255807-EG 3/4" 2-Hole Conduit Strap

Product Specifications

• Catalog Description: STRUT PIPE STRAP, 3/4", 1-5/8"X 1-1/8"X 3-1/16", EG
• Category: Channel & Strut Fittings
• Full Technical Description: One Piece, Two Hole Type; Electrogalvanized Finish; 3-1/8 Inch Strap Length; 3/4 Inch min. Pipe Size; 3/4 Inch Max. Pipe Size; .75 min. Pipe Size - Decimal; .75 Max. Pipe Size - Decimal; 3/4 min. Pipe Size - Fractional; 3/4 Max. Pipe Size - Fractional; Hot Rolled Pressed Process; 9/32 Inch Mounting Hole Size; 1/8 Inch Strap Thickness; ASTM A366, ASTM A575, ASTM A576, ASTM A635, ASTM A36, ASTM A570 33 Steel Strap Material; UNISTRUT[R] Brand; Weight 26 lb Per 100 Pieces; Exclusions Hardware; Maximum Pipe Size - Decimal - Uom in; Minimum Pipe Size - Decimal - Uom in
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Pipe Strap
• Unspsc: 31162906
• UPC 12 Digit: 786364255798
• SKU Name: unistr p255807eg

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
• Product Spec Sheet
