Overview

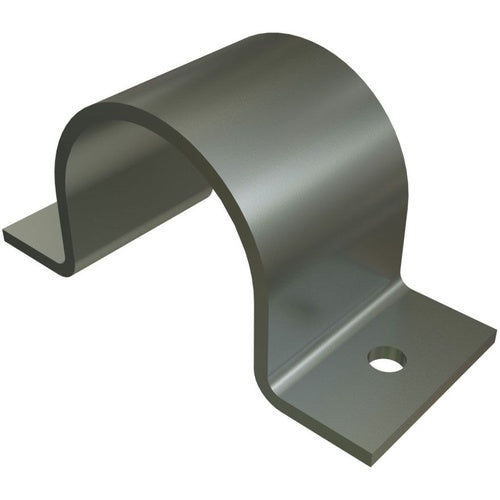

Unistrut P2558-60-EG 6" 2-Hole Conduit Strap

Product Specifications

• Catalog Description: STRUT PIPE STRAP, 6", 1-5/8"X 6-7/8"X 10", EG
• Category: Channel & Strut Fittings
• Full Technical Description: One Piece, Two Hole Type; Electrogalvanized Finish; 10 Inch Strap Length; 6 Inch min. Pipe Size; 6 Inch Max. Pipe Size; 6 min. Pipe Size - Decimal; 6 Max. Pipe Size - Decimal; 6 min. Pipe Size - Fractional; 6 Max. Pipe Size - Fractional; Hot Rolled Pressed Process; 7/16 Inch Mounting Hole Size; 1/4 Inch Strap Thickness; ASTM A366, ASTM A575, ASTM A576, ASTM A635, ASTM A36, ASTM A570 33 Steel Strap Material; UNISTRUT[R] Brand; Weight 225 lb Per 100 Pieces; Exclusions Hardware; Items/Features Supporting Rib; Maximum Pipe Size - Decimal - Uom in; Minimum Pipe Size - Decimal - Uom in
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Pipe Strap
• Unspsc: 31162906
• UPC 12 Digit: 786364255927
• SKU Name: unistr p255860eg

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
• Product Spec Sheet
