Overview

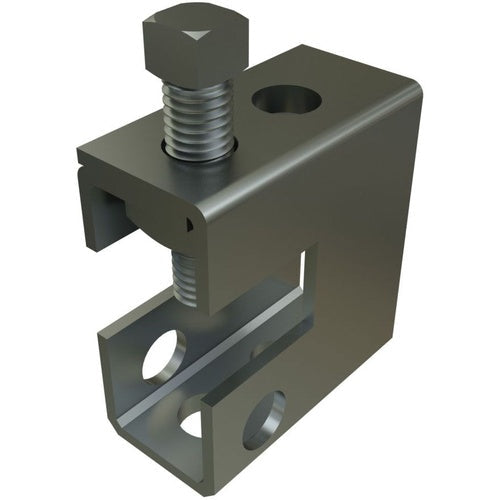

Unistrut P2676-EG Beam Clamp

Product Specifications

• Catalog Description: STRUT BEAM CLAMP, 1-7/8"X 2-7/8"X 2-5/8", EG
• Category: Channel & Strut Fittings
• Full Technical Description: Wide Throat Type; Steel Material; Electrogalvanized Finish; 7/8 Inch Max. Jaw Capacity; Mechanical Support Application; Hot Rolled Pickled and Oiled Process; ASTM A1011/A575/A576/A635/B633 SS Grade 33 Material Specification; 500 Pound Load Capacity; 1/2 Inch X 2 Inch Screw Size; Square Head Screw Type; Yes Supplied With Screw; Overall Dimension 2-5/8 Inch Length X 1-7/8 Inch Width X 2-7/8 Inch Height; Maximum Rod Size 1/2 Inch; Torque Rating 125 Inch-Pound; Channel Size 1-5/8 Inch Width; Hole Spacing 13/16 Inch (From End), 1-7/8 Inch (on Center); Includes Nut
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 786364032078
• SKU Name: unistr p2676eg

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
• Product Spec Sheet
