Product information
Overview

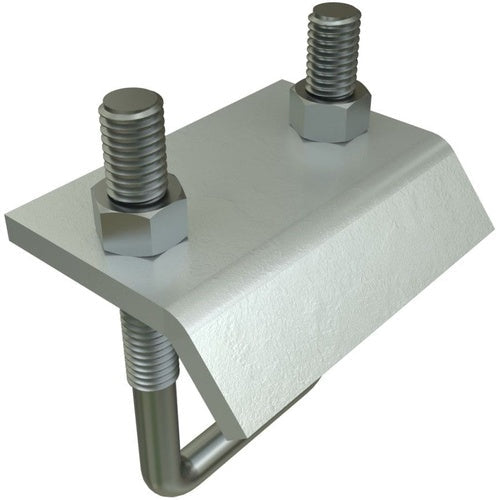

Unistrut P2785-HG 3-3/8 Beam Clamp
Product Specifications
- Brand Name: Unistrut
- Special Features: Part of Complete System
- Sub Brand: Metal Framing Components
- Type: A type of forged or fabricated clamp that is used to attach rod hangers to beams by clamping onto the load flange.
- Catalog Description: STRUT BEAM CLAMP, 3"X 3-3/4"X 2-1/4", HG
- Category: Channel & Strut Fittings
- Full Technical Description: 1-U Type; Steel Material; Hot Dip Galvanized Finish; 3/4 Inch Max. Jaw Capacity; Mechanical Support Application; Hot Rolled Pickled and Oiled Process; ASTM A1011/A575/A576/A635/A123/A153 SS Grade 33 Material Specification; 1000 Pound Load Capacity; 3/8 Inch Screw Size; Overall Dimension 3 Inch Width X 3-3/8 Inch Height; Safety Factor 2.5; Channel Size 1-5/8 Inch Width; Used on P1000/P1100/P2000/P3000/P3300/P3301/P4000/P4001/P4100/P4101 Channel; Includes Hex Nut and U-Bolt; Approval CSA; P2785 Model
- Made In Usa: Yes
- Manufacturer: Unistrut Corp.
- Manufacturer Brand: Unistrut Corp.
- Sub Category: Beam Clamp
- Unspsc: 31162905
- UPC 12 Digit: 786364032429
- SKU Name: unistr p2785hg
