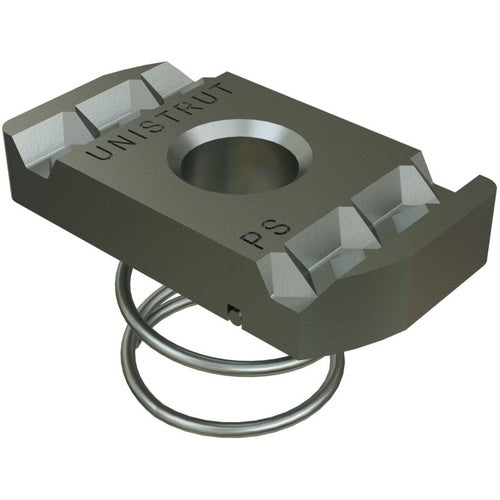

Unistrut P4010-EG 1/2-13 Spring Nut

Overview

Unistrut P4010-EG 1/2-13 Spring Nut

Product Specifications

• Brand Name: Unistrut
• Special Features: Part of Complete System
• Sub Brand: Metal Framing Components
• Type: Spring nuts provide the correct amount of spring tension without damaging surfaces and eliminates the need for lockwashers and spanners.
• Catalog Description: STRUT CHANNEL NUT, 1/2"-13, 3/4"X 11/16"X 1-23/64", WITH SHORT SPRING, EG
• Category: Screws,Nuts,Bolts,Washers
• Full Technical Description: With Spring Type; Mild Steel Bar Material; Electrogalvanized Finish; 1/2 Inch Nominal Diameter; Unc-2 Thread Series; 13 TPI; CSA, ANSI B1.1 Applicable Standard; Case Hardened Process; ASTM A576/B633 Grade 1015 Material Specification; Safety Factor 3; Used on P3300/P4000/P4100/P4400/P4520/P3301/P4001/P4101/P4401/P4521, 1-5/8 Inch Width Channel
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel Nut - Non Metric
• Unspsc: 31161721
• UPC 12 Digit: 786364401003
• SKU Name: unistr p4010eg
