Overview

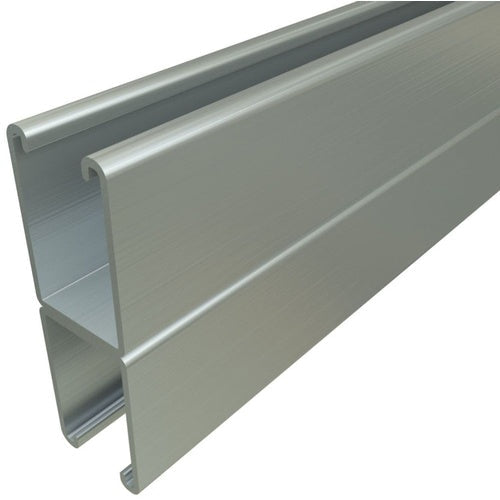

Unistrut P5501-20HG 1-5/8" x 4-7/8", 12 Gauge, Back-to-Back, Solid

Product Specifications

• Catalog Description: STRUT CHANNEL, 12GA, 1-5/8"X 4-7/8", SOLID, B2B-WELD, HG
• Category: Channel & Strut
• Full Technical Description: Back to Back Combination Type; Low Carbon Strip Steel Material; Hot Dipped Galvanized Finish; 20 ft; 1 5/8 Inch; 4 7/8 Inch; Solid Configuration; 0.105 Inch Thickness; Cold Formed Process; 4.94 Lb/Ft Weight; 2 Channel(S); 2.11 Inch Deflection; 970 lb Beam Load Rating; UNISTRUT[T] Brand; P5501 Model
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel/Strut
• Unspsc: 30101804
• UPC 12 Digit: 786364041322
• SKU Name: unistr p550120hg min.qty 200'

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
• Product Spec Sheet
