Product information
Overview

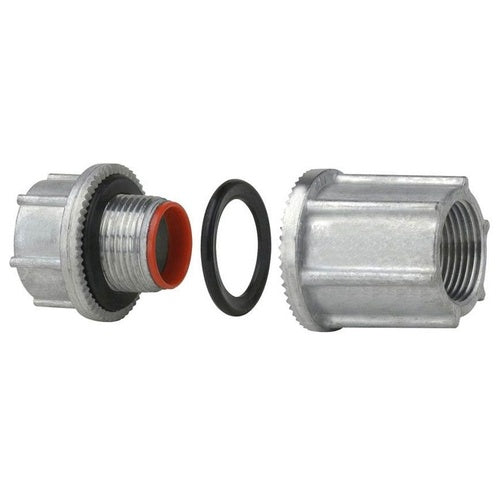

Crouse-Hinds STAG2 3/4" Alum Insulated Ground Hub
Product Specifications
- Catalog Description: EATON CROUSE-HINDS SERIES MYERS GROUND HUB, ALUMINUM, 3/4"
- Full Technical Description: Male Threaded, Tapered Female Threaded Type; Natural Aluminum (Body/Nut), Steel/Stainless Steel (Ground Screw) Material; 1.84 Inch Diameter X 1.67 Inch Height Size; Imc/Rigid Conduit Used on; UL 514B, CUL, CSA C22.2 Approval; Locknut Grounding Screw; 3/4 Inch Trade Size; NEMA 2/3/3R/4/4X/12, IP66, Vibrationproof, Chemical Resistance, Water/Dust Tight; Insulated Throat Type; Myers, Scru-Tite [R] Brand; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2, Class I Zone 1 Aex E II, Class I Zone 1 Ex E II; Wire Size 8 AWG (Ul/Csa); Application Hazardous Location; Applicable Standard Nec/Cec, IEC; STAG Model
- Catalog Number: STAG2
- UPC: 78473110106
- UPC 12 Digit: 784731101068
- Manufacturer: EATON CROUSE-HINDS MYERS HUBS
- UNSPSC: 39121311
