Product information
Overview

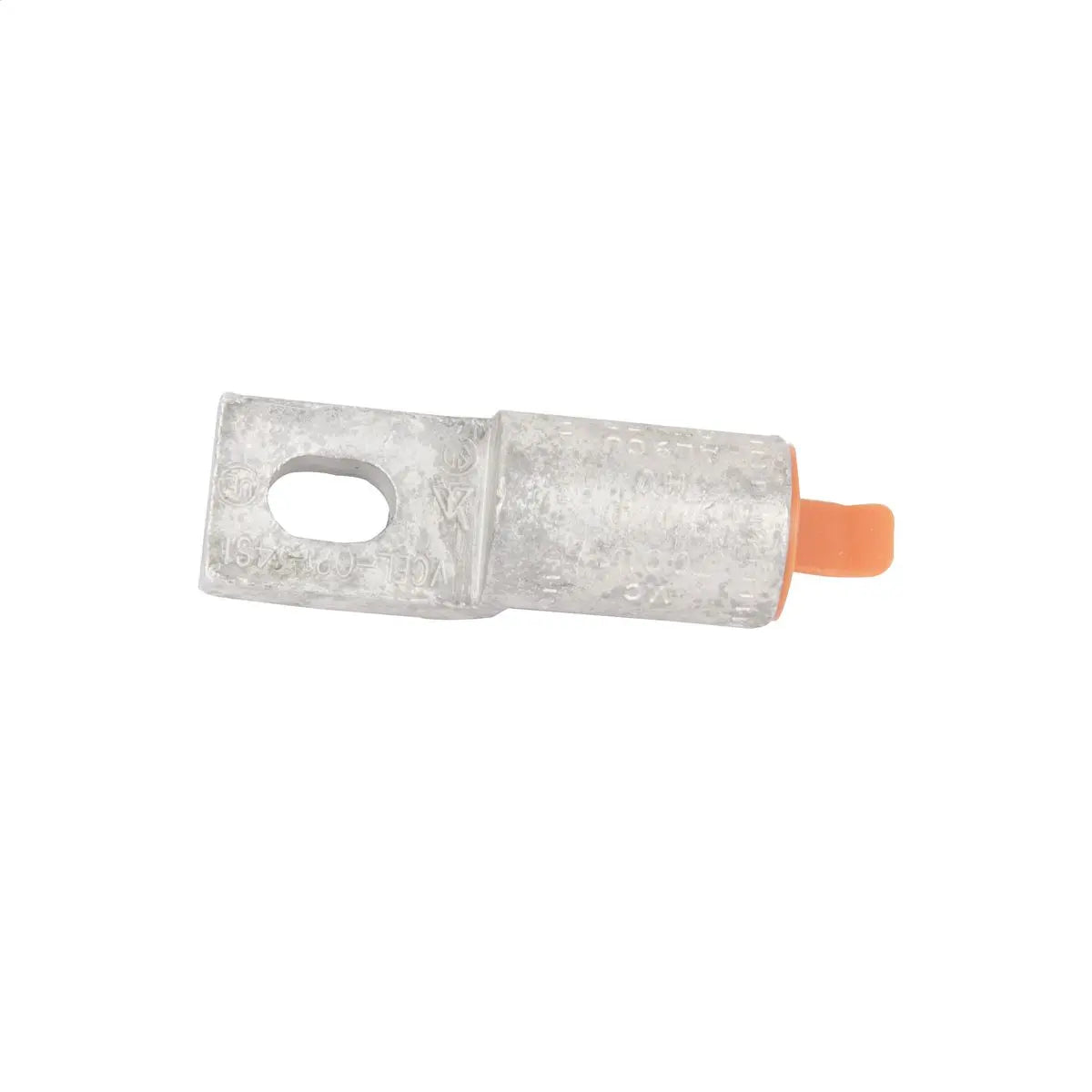

Anderson VCEL05012H1 Versatile Aluminum Compression Terminal, 500 MCM AL/CU, Single Hole
Product Specifications
- Catalog Description: VERSAtile Aluminum Compression Terminal, 500 MCM AL/CU, 1/2 Inch Pad Bolt Diameter, Single Hole
- Category: Compression Connectors and Terminals
- Full Technical Description: Anderson VERSAtile VCEL Aluminum Compression Terminal; Catalog Number VCEL05012H1; 500 MCM AL/CU Conductor Application; Aluminum Body Material; Aluminum Alloy Construction with Tin Plating; Impact Extruded Style; Standard Material Type; Single-Hole Pad Configuration; 1 Spade Hole; 0.500 Inch Pad Bolt Diameter; Compatible with VERSA-CRIMP and Conventional Compression Tools; UL Listed for Concentric and Compact Aluminum Conductors and Concentric Copper Conductors; CSA Certified; Meets ANSI C119.4 Class A Performance on Aluminum Concentric Conductors; Conductor Diameter Range 0.414 Inch Minimum to 0.813 Inch Maximum for VersaCrimp; Die Type Tooling Diameter Range 0.811 Inch Minimum to 0.813 Inch Maximum; Dimensions 3.400 Inch Length x 1.187 Inch Width x 1.247 Inch Height; Weight 0.844 lb
- Manufacturer: Hubbell / Anderson
- Manufacturer Brand: Anderson
- Sub Category: Aluminum Compression Terminal
- UPC 12 Digit: 096359336495
- SKU Name: VCEL05012H1
