Overview

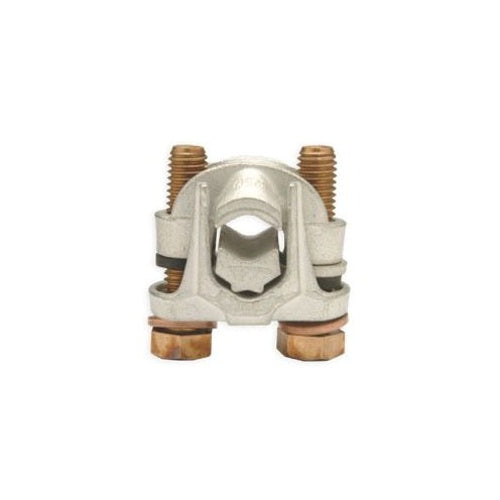

Penn-Union VTA-2 4/0-AWG Tap Connector & Spacer

Product Specifications

• Category: Splicing & Terminating Kits
• Full Technical Description: Cast Tin Plated High Strength Bronze Body, Rubber Washer Material; 1/0 AWG Stranded (Copper), 4/0 AWG Solid (Copper Weld) min. Run Conductor Size; 4/0 AWG Stranded (Copper), 4/0 AWG Solid (Copper Weld) Max. Run Conductor Size; 10 AWG Stranded (Copper), 4/0 AWG (Copper Weld) min. Tap Conductor Size; 4/0 AWG Stranded (Copper), 4/0 AWG Solid (Copper Weld) Max. Tap Conductor Size; Two Bolt With Spacer Bar Installation; Copper/Copper Weld Conductor Material; UL Approval; VTA Model
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 785037752862
• SKU Name: vta2 pennunion

Resources

• Manufacturer Spec Sheet
