Overview

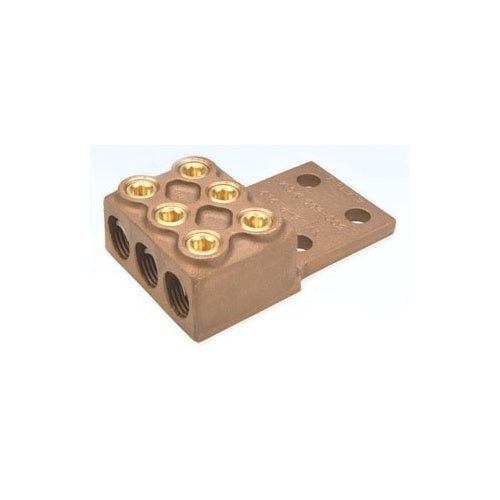

Penn-Union VVL3-21919 Terminal Lug

Product Specifications

• Category: Large Terminals & Connectors
• Full Technical Description: Horizontal 90 Deg Type; Copper Alloy Material; 5-3/4 Inch Overall Length; 300 MCM min. Conductor Size; 500 MCM Max. Conductor Size; 3 Conductor(S); 9/16 Inch Stud Size; 3-1/8 Inch L X 3 Inch W X 3/8 Inch Thk Pad Size; 4 Pad Hole(S); Straight Pad Type; Hex Socket Screw Type; VVL3 Model
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 785037757829
• SKU Name: vvl321919 pennunion

Resources

• Manufacturer Spec Sheet
