Overview

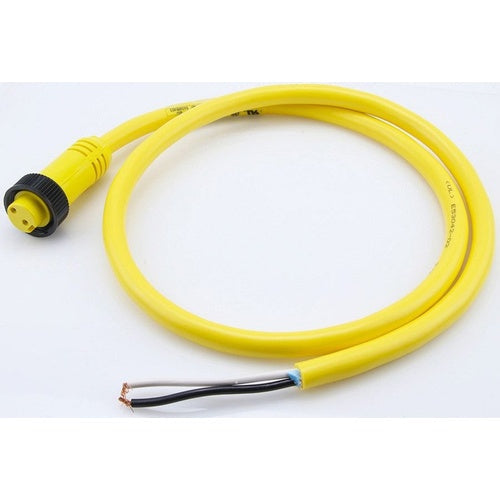

Woodhead 102000A01F300 1300060108 2P 30Ft Cordset

Product Specifications

• UPC: 78678842943
• Wire Code: 1-White 2-Black
• Cable Type: 16 AWG STOOW, PVC Jacket
• Color: Yellow
• Length: 30 Ft
• Material: Black Epoxy Coated Zinc Coupling Nut, Gold Over Nickel Plated Contact, Molded PVC Connector Body, PVC Connector Face
• Application: Hydraulic Valve, Limit Switch, Photoelectric Sensor, Proximity Sensor, Conveyor, Packaging, Material Handling System
• Enclosure: IP67
• Approval: UL, CSA
• Additional Information: Temperature Rating -20 to 105 Deg C
• Catalog Number: 102000A01F300
• Brand Name: Mini-Change[R]
• Type: Female
• Keyway Type: Single
• Connector Type: Straight, Single End
• Number Of Poles: 2
• Voltage Rating: 600 VAC/VDC
• Current Rating: 13 Ampere
• Category: Cords Sets
• Full Technical Description: Female Type; Black Epoxy Coated Zinc Coupling Nut, Gold Over Nickel Plated Contact, Molded PVC Connector Body, PVC Connector Face Material; Yellow Color; 30 ft; 16 AWG Stoow, PVC Jacket Cable Type; UL, CSA Approval; Hydraulic Valve, Limit Switch, Photoelectric Sensor, Proximity Sensor, Conveyor, Packaging, Material Handling System Application; 600 VAC/VDC Voltage Rating; Straight, Single End Connector Type; IP67 Enclosure; 13 Ampere Current Rating; 2 Pole(S); Single Keyway Type; 1-White 2-Black Wire Code; MINI-CHANGE[R] Brand; Temperature Rating -20 to 105 Deg C
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Quick Connect Cable Assembly
• Unspsc: 26121600
• UPC 12 Digit: 786788429430
• SKU Name: wood 102000a01f300

Resources

• Manufacturer Spec Sheet
