Overview

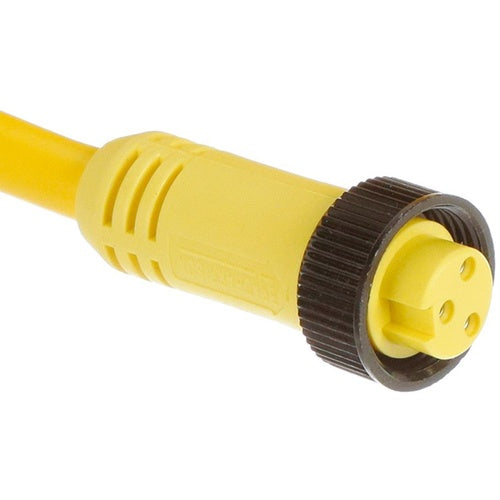

Woodhead 103000A01F120 1300060232 3P 10A F Cordset

Product Specifications

• Brand Name: Brad
• Type: Single Ended
• Voltage Rating: 600 V
• __Orientation: Straight
• Color: Yellow
• Conductor Range: 16
• Environmental Conditions: IP67
• Finish: STOOW
• Material: PVC
• Size: 3.66m (12.0)
• Sub Brand: Mini-Change
• Temperature Rating: -20C to +105C
• Catalog Description: MINI-CHANGE A-SIZE SINGLE-ENDED CORDSET, 3 POLES, FEMALE (STRAIGHT) TO PIGTAIL, 16 AWG, YELLOW PVC CABLE, 3.66M (12.0') LENGTH
• Category: Cords Sets
• Full Technical Description: Female Type; Gold Nickel Plated Brass (Contact), Molded PVC (Body), PVC (Connector Face) Material; Yellow Color; 12 Foot; 16 AWG Stoow, PVC Jacket Cable Type; UL, CSA Approval; Hydraulic Valve, Limit Switch, Photoelectric Sensor, Proximity Sensor, Conveyor, Packaging, Material Handling System Application; 600 Volt AC/DC Voltage Rating; Straight, Single Ended Connector Type; IP67 Enclosure; 13 Amp Current Rating; 3 Pole(S); Single Keyway Type; 1-Green (Ground) 2-Black 3-White Wire Code; Woodhead Brand; Temperature Rating -20 to 105 Deg C; 130006 Model
• Manufacturer: Woodhead
• Manufacturer Brand: Electrical/Industrial/Network/Passive
• Sub Category: Quick Connect Cable Assembly
• Unspsc: 39121413
• UPC 12 Digit: 781725532242
• SKU Name: wood 103000a01f120
