Overview

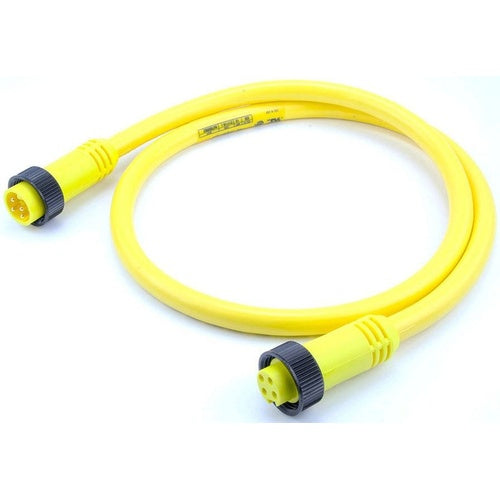

Woodhead 114020A01F1202 1300100535 4P 12Ft Male/Female

Product Specifications

• UPC: 78678843812
• Wire Code: 1-Black 2-White 3-Red 4-Green (Ground)
• Cable Type: 16 AWG STOOW, PVC Jacket
• Color: Yellow
• Length: 12 Ft
• Material: Nylon 6/6 Coupling Nut, Gold Over Nickel Plated Contact, Molded PVC Connector Body, PVC Connector Face
• Application: Hydraulic Valve, Limit Switch, Photoelectric Sensor, Proximity Sensor, Conveyor, Packaging, Material Handling System
• Enclosure: NEMA 6P, IP67, IP68
• Approval: UL, CSA
• Additional Information: Temperature Rating -20 to 105 Deg C
• Catalog Number: 114020A01F1202
• Brand Name: Mini-Change[R]
• Type: Female/Male
• Keyway Type: Single
• Connector Type: Straight/Straight, Double End
• Number Of Poles: 4
• Voltage Rating: 600 VAC/VDC
• Current Rating: 10 Ampere
• Category: Cords Sets
• Full Technical Description: Female/Male Type; Nylon 6/6 Coupling Nut, Gold Over Nickel Plated Contact, Molded PVC Connector Body, PVC Connector Face Material; Yellow Color; 12 ft; 16 AWG Stoow, PVC Jacket Cable Type; UL, CSA Approval; Hydraulic Valve, Limit Switch, Photoelectric Sensor, Proximity Sensor, Conveyor, Packaging, Material Handling System Application; 600 VAC/VDC Voltage Rating; Straight/Straight, Double End Connector Type; NEMA 6P, IP67, IP68 Enclosure; 10 Ampere Current Rating; 4 Pole(S); Single Keyway Type; 1-Black 2-White 3-Red 4-Green (Ground) Wire Code; MINI-CHANGE[R] Brand; Temperature Rating -20 to 105 Deg C
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Quick Connect Cable Assembly
• Unspsc: 26121600
• UPC 12 Digit: 786788438128
• SKU Name: wood 114020a01f1202
