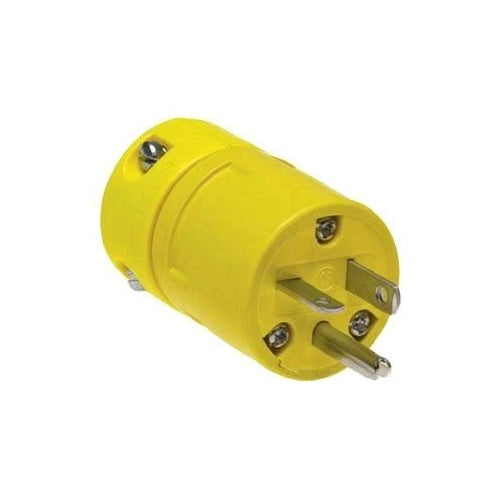

Woodhead 1448 1301410020 Insulated Plug-Nema6-20P

Product Specifications

• UPC: 78678870123
• Number Of Poles: 2
• Number Of Wires: 3
• Cord Size: 0.335 to 0.64 Inch
• Material: NEoTEX Paracril OZO Rubber
• Color: Yellow
• Grade: Industrial
• Approval: UL, CSA
• Additional Information: Approval UL, CSA; Application Industrial; Housing Material NEoTEX Paracril OZO Rubber; Blade Material Nickel-plated Brass; Temperature Rating -40 to 75 Deg C; Color Yellow
• Catalog Number: 1448
• Brand Name: Super-Safeway[TM]
• Model: 130141
• Type: Polarized
• Constructional Feature: Chemical Resistant, Abrasion Resistant
• Configuration: 6-20P
• Voltage Rating: 250 V
• Current Rating: 20 Ampere
• Catalog Description: SUPER-SAFEWAY PLUG, 2 POLE/3 WIRE, NEMA 6-20, 250V
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Neotex Paracril Ozo Rubber Material; Yellow Color; 6-20P Configuration; 3 Wire(S); Industrial Grade; UL, CSA Approval; 250 V Voltage Rating; 20 Ampere Current Rating; 2 Pole(S); Chemical Resistant, Abrasion Resistant; 0.335 to 0.64 Inch Cord Size; Super-Safeway Brand; Approval UL, CSA; Application Industrial; Housing Material Neotex Paracril Ozo Rubber; Blade Material Nickel-Plated Brass; Temperature Rating -40 to 75 Deg C; Color Yellow; 130141 Model
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Straight Blade Plug
• Unspsc: 39121402
• UPC 12 Digit: 786788701239
• SKU Name: wood 1448

Resources

• Manufacturer Spec Sheet
