Product information
Overview

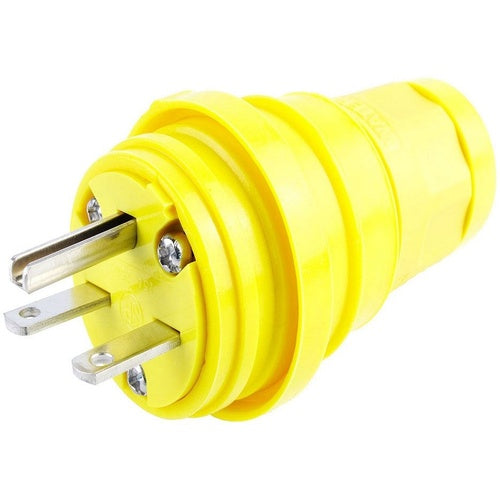

Woodhead 14W49 1301460044 Watertight Plug-Nema6-15P
Product Specifications
- UPC: 78678871003
- Material: Neotex Paracril Ozo Rubber
- Color: Yellow
- Approval: UL, CSA, NSF
- Additional Information: Enclosure Rating NEMA 1/3/4/4X/5/6/6P/12, IP55/56/57/65/66/67; Temperature Rating -40 to 75 Deg C
- Catalog Number: 14W49
- Brand Name: Woodhead
- Model: 130146
- Configuration: 6-15P
- Voltage Rating: 250 Volt
- Current Rating: 15 Amp
- Number Of Poles: 2
- Number Of Wires: 3
- Catalog Description: WATERTITE EXTREME PLUG, 2 POLE/3 WIRE, NEMA 6-15, 250V, CORD GRIP BODY SIZE F2, SILICONE HUSK
- Category: Plugs,Conn,Inlets,Outlets,Lampholdr
- Full Technical Description: Neotex Paracril Ozo Rubber Material; Yellow Color; 6-15P Configuration; 3 Wire(S); UL, CSA, NSF Approval; 250 Volt Voltage Rating; 15 Amp Current Rating; 2 Pole(S); Watertite [R] Brand; Enclosure Rating NEMA 1/3/4/4X/5/6/6P/12, IP55/56/57/65/66/67; Temperature Rating -40 to 75 Deg C; 130146 Model
- Manufacturer: Woodhead
- Manufacturer Brand: Brad Harrison/Daniel Woodhead
- Sub Category: Straight Blade Plug
- Unspsc: 39121402
- UPC 12 Digit: 786788710033
- SKU Name: wood 14w49
