Overview

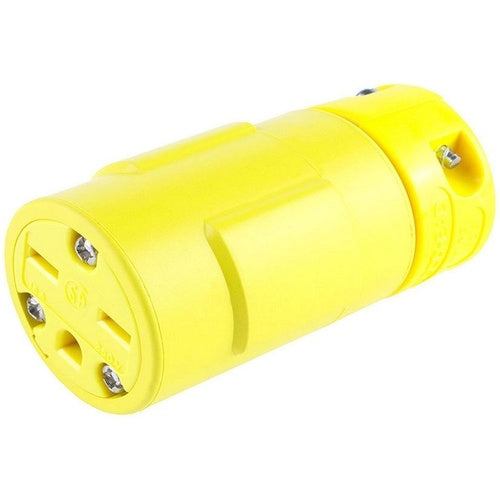

Woodhead 1549 1301410038 Insulated Connector-Nema6-15R

Product Specifications

• UPC: 78678870303
• Number Of Poles: 2
• Number Of Wires: 3
• Color: Yellow
• Cord Size: 0.335 to 0.64 Inch
• Material: NEoTEX Paracril OZO Rubber
• Grade: Industrial
• Approval: UL, CSA
• Additional Information: Approval UL, CSA; Application Industrial; Housing Material NEoTEX Paracril OZO Rubber; Connectors Material Nickel-plated Brass; Temperature Rating -40 to 75 Deg C; Color Yellow
• Catalog Number: 1549
• Brand Name: Super-Safeway[TM]
• Model: 130141
• Type: Polarized
• Constructional Feature: Chemical Resistant, Abrasion Resistant
• Configuration: 6-15R
• Voltage Rating: 250 V
• Current Rating: 15 Ampere
• Catalog Description: SUPER-SAFEWAY CONNECTOR, 2 POLE/3 WIRE, NEMA 6-15, 250V
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Neotex Paracril Ozo Rubber Material; Yellow Color; 6-15R Configuration; 3 Wire(S); Industrial Grade; UL, CSA Approval; 250 V Voltage Rating; 15 Ampere Current Rating; 2 Pole(S); Chemical Resistant, Abrasion Resistant; 0.335 to 0.64 Inch Cord Size; Super-Safeway Brand; Approval UL, CSA; Application Industrial; Housing Material Neotex Paracril Ozo Rubber; Connectors Material Nickel-Plated Brass; Temperature Rating -40 to 75 Deg C; Color Yellow; 130141 Model
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Straight Blade Connector
• Unspsc: 39121402
• UPC 12 Digit: 786788703035
• SKU Name: wood 1549

Resources

• Manufacturer Spec Sheet
