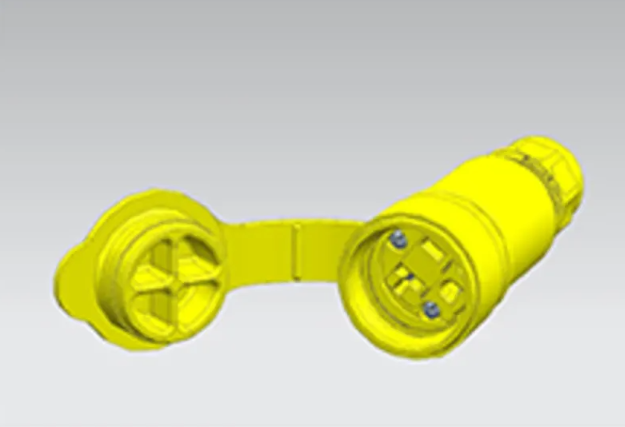

Woodhead 15W33 Watertite Extreme Connector, 2 Pole/3 Wire, NEMA 5-20, 125V

Overview

Woodhead 15W33 Watertite Extreme Connector, 2 Pole/3 Wire, NEMA 5-20, 125V

Product Specifications

• MFG Part #: 15W33
• UPC: 786788711221
• Brand Name: Woodhead®
• Series: 130146
• Type: Female
• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• NEMA Rating: NEMA 5-20
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 1/8 to 3/16 Inch
• Material: Silicone
• Color: Yellow
• Terminal Type: Screw
• Enclosure: IP67/IP69K
• Temperature Rating: -40 to 75 Deg C
• Catalog Description: WATERTITE EXTREME CONNECTOR, 2 POLE/3 WIRE, NEMA 5-20, 125V, SILICONE HUSK
• Category: Plugs, Connectors & Receptacles
• Full Technical Description: Female Watertite Extreme Connector; NEMA 5-20 Configuration; 2 Pole 3 Wire Design; Silicone Construction; Yellow Finish; 125 VAC Voltage Rating; 20 Amp Rating; Screw Terminal Connection; IP67/IP69K Protection; Cord Grip Body Size F2; Temperature Rating -40 to 75 Deg C
• Manufacturer: Woodhead
• Manufacturer Brand: Woodhead®
• Sub Category: Female Connectors
• Unspsc: 39121402
• UPC 12 Digit: 786788711221
• SKU Name: wood 15w33
