Overview

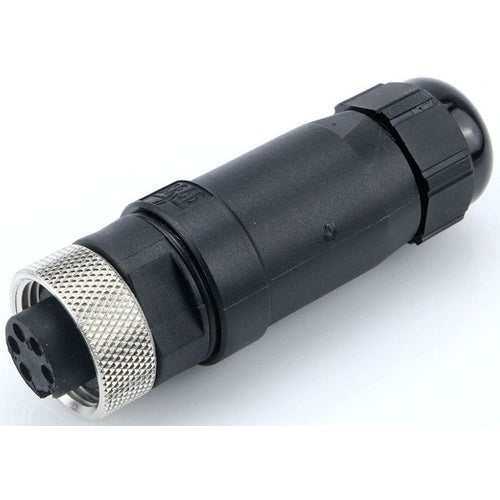

Woodhead 1A5000-34 1300170023 Mc 5P F/Attachable Straight

Product Specifications

• Brand Name: Brad
• Conductor Range: 15 to 24
• Connection: Internal Thread
• Environmental Conditions: IP67
• Sub Brand: Mini-Change
• Temperature Rating: -20C to +80C
• Type: Field Attachable Connector
• Voltage Rating: 600 VAC//VDC
• Catalog Description: MINI-CHANGE FIELD ATTACHABLE, FEMALE CONNECTOR, 5 POLE, CABLE RANGE: 5.08-11.43MM OUTSIDE DIAMETER WITH INTERNAL THREADS
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Female Straight Type; 24 to 15 AWG Cable Size; CSA Approval; 600 Volt AC/DC Voltage Rating; IP67 Enclosure; 8 Amp Current Rating; Nylon Body Material; 5 Pole(S); Single Keyway Type; BRAD[R], MINI-CHANGE[R] Brand; RoHS Compliant; Coupling Type Internal Thread; Cable Diameter 5.08 to 11.43 Millimeter; Material Copper Alloy (Contact), Nickel Plated Brass (Coupling Nut), Gold Over Copper (Plating Mating); Operating Temperature -20 to 80 Deg C; 130017 Model
• Manufacturer: Woodhead
• Manufacturer Brand: Electrical/Industrial/Network/Passive
• Sub Category: Quick Connect Connector
• Unspsc: 39121413
• UPC 12 Digit: 781725530927
• SKU Name: wood 1a500034
