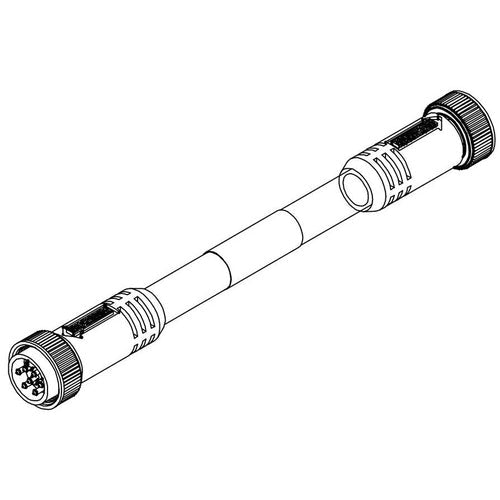

Woodhead 227020A01F030 1300110046 7P 3Ft Male/Female Cordset

Product Specifications

• UPC: 78678851555
• Wire Code: 1-WHITE-BLACK 2-BLACK 3-WHITE 4-RED 5-ORANGE 6-BLUE 7-GREEN (GROUND)
• Cable Type: 16 AWG STOOW, STRANDED COPPER CONDUCTOR, PVC JACKET
• Color: YELLOW
• Length: 3 FT
• Length In Ft: 3
• Length In Meters: .9144
• Material: DIE CAST BLACK EPOXY COATED ZINC COUPLING NUT, GOLD/PALLADIUM NICKEL PLATED CONTACT, MOLDED PVC BODY, PVC CONNECTOR FACE
• Application: ASSEMBLY LINE, CONVEYOR, HP MOTOR, LIMIT SWITCH, MATERIAL HANDLING SYSTEM, PACKAGING, FOOD PROCESSING EQUIPMENT, PHOTOELECTRIC SENSOR, PNEUMATIC/HYDRAULIC VALVE, PROXIMITY SWITCH, SOLENOID, TRANSFER
• Enclosure: NEMA 6P, IP68
• Approval: UL, CSA
• Catalog Number: 227020A01F030
• Length In Ft Uom: ft
• Length In Meters Uom: m
• Additional Information: OPERATING TEMPERATURE -4 TO 221 DEG F
• Brand Name: Mini-Change[R]
• Type: FEMALE/MALE
• Keyway Type: SINGLE
• Connector Type: STRAIGHT
• Number Of Poles: 7
• Voltage Rating: 600 VAC/VDC V
• Current Rating: 8 AMPERE
• Catalog Description: 7P MALE/FEMALE ST/ST3' 16/7AWG PVC CORD
• Category: Cords Sets
• Full Technical Description: Female/Male Type; Die Cast Black Epoxy Coated Zinc Coupling Nut, Gold/Palladium Nickel Plated Contact, Molded PVC Body, PVC Connector Face Material; Yellow Color; 3 ft; 3 Length in ft; .9144 Length in Meters; 16 AWG Stoow, Stranded Copper Conductor, PVC Jacket Cable Type; UL, CSA Approval; Assembly Line, Conveyor, HP Motor, Limit Switch, Material Handling System, Packaging, Food Processing Equipment, Photoelectric Sensor, Pneumatic/Hydraulic Valve, Proximity Switch, Solenoid, Transfer Application; 600 VAC/VDC V Voltage Rating; Straight Connector Type; NEMA 6P, IP68 Enclosure; 8 Ampere Current Rating; 7 Pole(S); Single Keyway Type; 1-White-Black 2-Black 3-White 4-Red 5-Orange 6-Blue 7-Green (Ground) Wire Code; MINI-CHANGE[R] Brand; Operating Temperature -4 to 221 Deg F; Length in ft - Uom ft; Length in Meters - Uom M
• Made In Usa: Yes
• Manufacturer: WOODHEAD/AERO-MOTIVE/BRAD HARRISON/DANIEL WOODHEAD
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Quick Connect Cable Assembly
• Unspsc: 39121413
• UPC 12 Digit: 786788515553
• SKU Name: wood 227020a01f030
