Overview

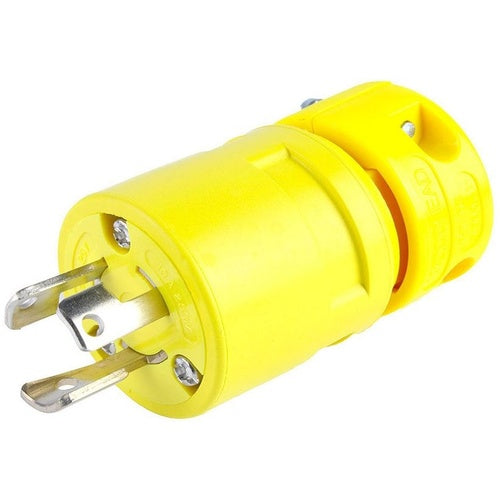

Woodhead 2407 1301410044 Locking Plug-3P3W10A250V

Product Specifications

• UPC: 78678870480
• Number Of Poles: 3
• Number Of Wires: 3
• Material: NEoTEX Paracril OZO Rubber
• Color: Yellow
• Cord Size: 0.325 to 0.84 Inch
• Approval: UL
• Additional Information: Application Industrial; Temperature Rating -40 to 75 Deg C
• Catalog Number: 2407
• Brand Name: Super-Safeway[TM]
• Model: 130141
• Type: Polarized
• Constructional Feature: Chemical Resistant, Abrasion Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 125/250 V
• Current Rating: 15 Ampere at 125 V, 10 Ampere at 250 V
• Catalog Description: SUPER-SAFEWAY PLUG WITH LOCKING BLADE, 3 POLE/3 WIRE, NON-NEMA, 15A/125V, 10A/250V
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Neotex Paracril Ozo Rubber Material; Yellow Color; Non-NEMA Locking Configuration; 3 Wire(S); UL Approval; 125/250 V Voltage Rating; 15 Ampere at 125 V, 10 Ampere at 250 V Current Rating; 3 Pole(S); Chemical Resistant, Abrasion Resistant; 0.325 to 0.84 Inch Cord Size; Super-SAFEWAY[TM] Brand; Application Industrial; Temperature Rating -40 to 75 Deg C; 130141 Model
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 786788704803
• SKU Name: wood 2407

Resources

• Manufacturer Spec Sheet
