Overview

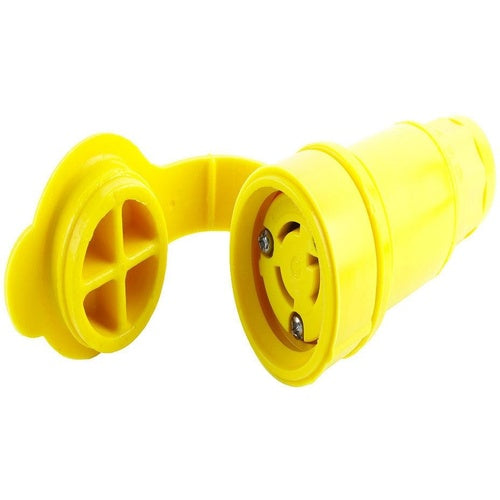

Woodhead 25W47 1301460099 Locking Connector & Cap-Nema L5-15R

Product Specifications

• UPC: 78678871302
• Number Of Poles: 2
• Number Of Wires: 3
• Material: Neotex Paracril Ozo Rubber
• Color: Yellow
• Cord Size: 0.062 to 0.625 Inch
• Approval: UL, CSA, NSF
• Additional Information: RoHS Compliant; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Application Wet Location
• Catalog Number: 25W47
• Brand Name: Woodhead
• Model: 130146
• Type: Polarized
• Constructional Feature: Chemical/Abrasion/Vapor Resistant, Water Tight
• Configuration: L5-15R
• Voltage Rating: 125 Volt
• Current Rating: 15 Amp
• Catalog Description: WATERTITE EXTREME CONNECTOR WITH LOCKING BLADE, 2 POLE/3 WIRE, NEMA L5-15, 125V, CORD GRIP BODY SIZE F2, SILICONE HUSK
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Neotex Paracril Ozo Rubber Material; Yellow Color; L5-15R Configuration; 3 Wire(S); UL, CSA, NSF Approval; 125 Volt Voltage Rating; 15 Amp Current Rating; 2 Pole(S); Chemical/Abrasion/Vapor Resistant, Water Tight; 0.062 to 0.625 Inch Cord Size; WATERTITE[R] Brand; RoHS Compliant; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Application Wet Location; 130146 Model
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Locking Device Connector
• Unspsc: 39121402
• UPC 12 Digit: 786788713027
• SKU Name: wood 25w47
