Product information
Overview

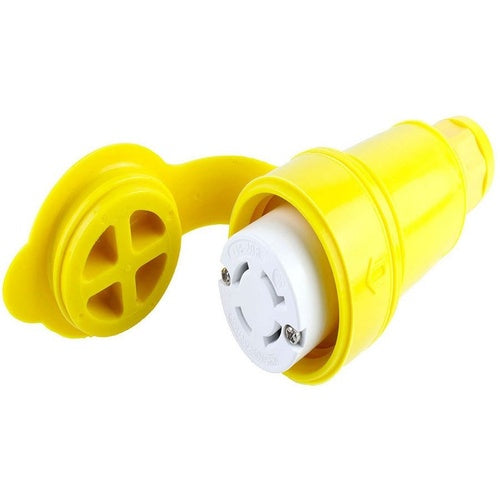

Woodhead 27W74 1301470053 Locking Connector & Cap-Nma L14-20R
Product Specifications
- UPC: 78678871313
- Number Of Poles: 3
- Number Of Wires: 4
- Material: Neotex Paracril Ozo Rubber
- Color: Yellow
- Cord Size: 0.187 to 0.812 Inch
- Approval: UL, CSA, NSF
- Additional Information: RoHS Compliant; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Application Wet Location
- Catalog Number: 27W74
- Brand Name: Woodhead
- Model: 130147
- Type: Polarized
- Constructional Feature: Chemical/Abrasion/Vapor Resistant, Water Tight
- Configuration: L14-20R
- Voltage Rating: 125/250 Volt
- Current Rating: 20 Amp
- Catalog Description: WATERTITE CONNECTOR WITH LOCKING BLADE, 3 POLE/4 WIRE, NEMA L14-20, 250V, CORD GRIP BODY SIZE F3
- Category: Plugs,Conn,Inlets,Outlets,Lampholdr
- Full Technical Description: Polarized Type; Neotex Paracril Ozo Rubber Material; Yellow Color; L14-20R Configuration; 4 Wire(S); UL, CSA, NSF Approval; 125/250 Volt Voltage Rating; 20 Amp Current Rating; 3 Pole(S); Chemical/Abrasion/Vapor Resistant, Water Tight; 0.187 to 0.812 Inch Cord Size; WATERTITE[R] Brand; RoHS Compliant; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Application Wet Location; 130147 Model
- Manufacturer: Woodhead
- Manufacturer Brand: Brad Harrison/Daniel Woodhead
- Sub Category: Locking Device Connector
- Unspsc: 39121402
- UPC 12 Digit: 786788713133
- SKU Name: wood 27w74
