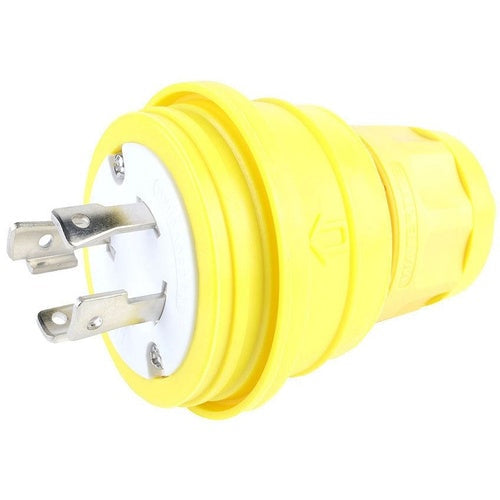

Woodhead 28W75 1301470079 Watertight Locking Plug-Nema L15-30P

Overview

Woodhead 28W75 1301470079 Watertight Locking Plug-Nema L15-30P

Product Specifications

• UPC: 78678871233
• Number Of Poles: 3
• Number Of Wires: 4
• Material: Neotex Paracril Ozo Rubber
• Color: Yellow
• Cord Size: 0.437 to 1.1 Inch
• Approval: UL, CSA, NSF
• Additional Information: RoHS Compliant; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Application Wet Location
• Catalog Number: 28W75
• Brand Name: Woodhead
• Model: 130147
• Type: Polarized
• Constructional Feature: Chemical/Abrasion/Vapor Resistant, Water Tight
• Configuration: L15-30P
• Voltage Rating: 250 Volt 3-Phase
• Current Rating: 30 Amp
• Catalog Description: WATERTITE PLUG WITH LOCKING BLADE, 3 POLE/4 WIRE, NEMA L15-30, 3 250V, CORD GRIP BODY SIZE F4
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Neotex Paracril Ozo Rubber Material; Yellow Color; L15-30P Configuration; 4 Wire(S); UL, CSA, NSF Approval; 250 Volt 3-Phase Voltage Rating; 30 Amp Current Rating; 3 Pole(S); Chemical/Abrasion/Vapor Resistant, Water Tight; 0.437 to 1.1 Inch Cord Size; WATERTITE[R] Brand; RoHS Compliant; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Application Wet Location; 130147 Model
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 786788712334
• SKU Name: wood 28w75

Resources

• Manufacturer Spec Sheet
