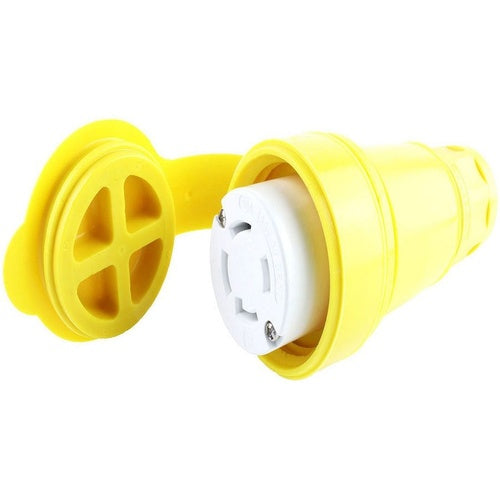

Woodhead 29W76 1301470108 Locking Connector & Cap-Nma L16-30R

Overview

Woodhead 29W76 1301470108 Locking Connector & Cap-Nma L16-30R

Product Specifications

• UPC: 78678871334
• Number Of Poles: 3
• Number Of Wires: 4
• Material: Neotex Paracril Ozo Rubber
• Color: Yellow
• Cord Size: 0.437 to 1.1 Inch
• Approval: UL, CSA, NSF
• Additional Information: RoHS Compliant; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Application Wet Location
• Catalog Number: 29W76
• Brand Name: Woodhead
• Model: 130147
• Type: Polarized
• Constructional Feature: Chemical/Abrasion/Vapor Resistant, Water Tight
• Configuration: L16-30R
• Voltage Rating: 480 Volt 3-Phase
• Current Rating: 30 Amp
• Catalog Description: WATERTITE CONNECTOR WITH LOCKING BLADE, 3 POLE/4 WIRE, NEMA L16-30, 3 480V, CORD GRIP BODY SIZE F4
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Neotex Paracril Ozo Rubber Material; Yellow Color; L16-30R Configuration; 4 Wire(S); UL, CSA, NSF Approval; 480 Volt 3-Phase Voltage Rating; 30 Amp Current Rating; 3 Pole(S); Chemical/Abrasion/Vapor Resistant, Water Tight; 0.437 to 1.1 Inch Cord Size; Watertite [R] Brand; RoHS Compliant; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Application Wet Location; 130147 Model
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Locking Device Connector
• Unspsc: 39121402
• UPC 12 Digit: 786788713348
• SKU Name: wood 29w76

Resources

• Manufacturer Spec Sheet
